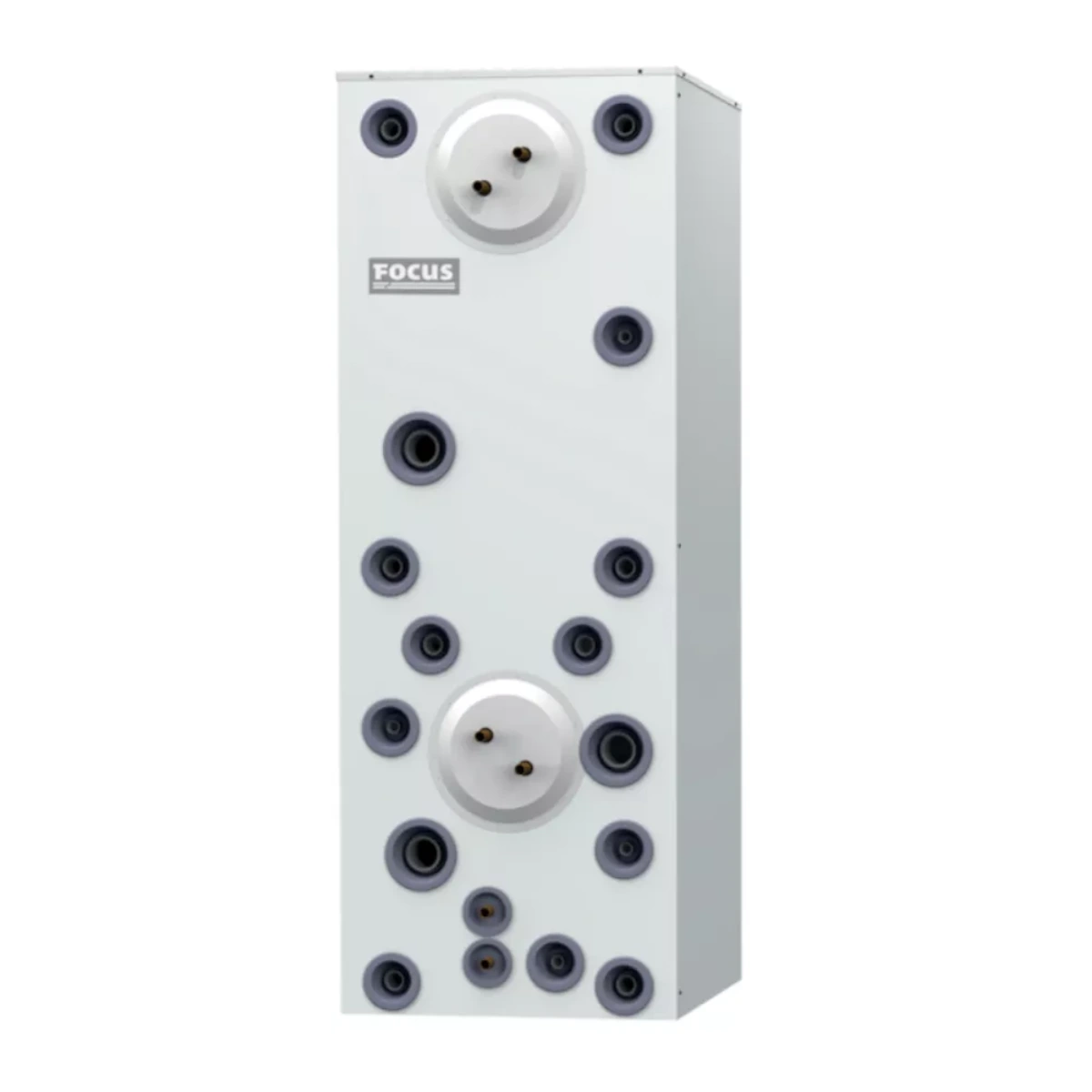

Metro Therm Accumulatortank Focus GTV Hybrid PN3 500 Liter

Description

A future-proof and flexible accumulator tank for maximum energy efficiency. Metro Therm Focus GTV Hybrid 500L is the optimal solution for those who want to combine several different heat sources and lower your energy costs. Thanks to the tank's versatile connection options, you can seamlessly dock and operate systems such as solar heating, heat pump, biofuel, biogas or a classic boiler - all at the same time. It makes your home ready for the energy demands of the future.

Maximum energy efficiency with advanced stratification technology

The heart of the Focus GTV Hybrid is the integrated stratification plate that effectively keeps cold and hot water separate. This thermal stratification prevents agitation in the tank, which optimizes energy storage. Your saved heat energy is therefore used significantly more efficiently than in a conventional accumulator tank, which provides higher efficiency for your entire heating system.

The tank is equipped with three high-performance loops:

• Loop for low-temperature systems (1.3 m²): Perfectly dimensioned and optimized for solar energy or docking with a heat pump.
• Domestic water loops (5.1 m² in total): Ensures continuous, stable and hygienic production of domestic hot water. With a flow rate of 30 l/min, the loop delivers an impressive output of 100 kW (at a temperature program of 80/10-58 °C).

Easy installation and uncompromising operational reliability

Metro Therm has developed the GTV Hybrid with both the installer and the property owner in mind. With its compact external dimensions and strategically placed connections, the tank easily fits through a standard door (70-width). This makes transport and placement in tight spaces, basement stairs and boiler rooms much easier. To minimize energy losses, the tank is enclosed in highly efficient, modern insulation. In addition, all connections have integrated leakage protection against reverse flow, which ensures the long-term operation and safety of the system.

Key features

• Multi-docking: Connect solar energy, heat pump, biofuel and boiler in parallel without complicated conversions.
• High hot water capacity: Tap water loop that provides a full 30 liters per minute with a maximum output of 100kW.
• Smart thermal stratification: Advanced stratification plate maximizes energy storage and reduces heat losses.
• Compact design: Smooth outer dimensions (1830x665x675mm) allow it to pass through standard doors.
• Integrated backflow protection: Leakage protection on all connections guarantees high operational reliability against backflow.

Specifications

• Pressure class: PN3
• Product type: Accumulator tank / Hybrid tank
• Volume: 500 Liter
• Dimensions (HxWxD): 1830x665x675mm
