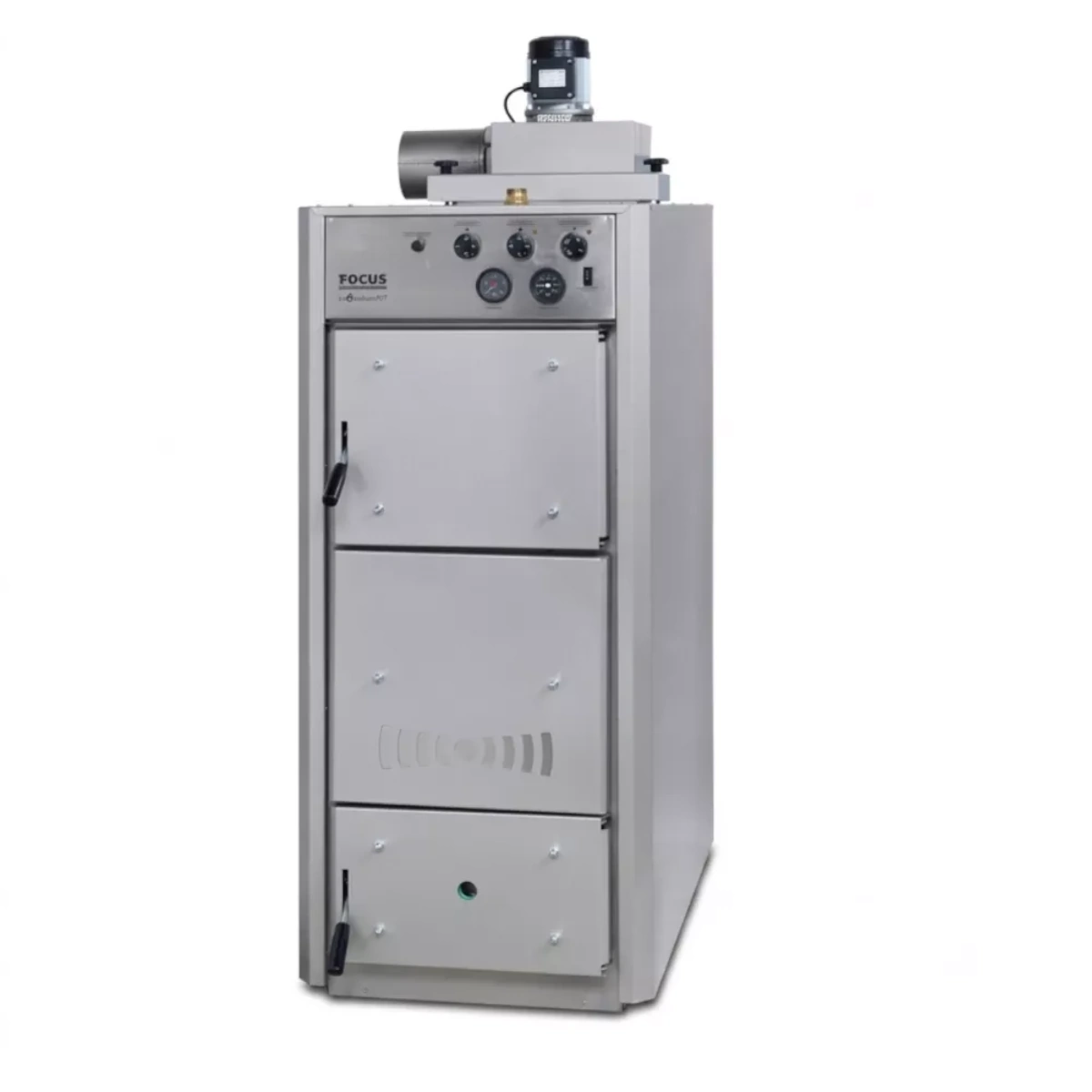

Metro Therm Focus Eco Nature 40 Vedpan

Description

Metro Therm Focus ECO Nature 40 is a modern and highly efficient wood boiler designed for you who want to combine maximum heating comfort with minimal environmental impact and lower electricity bills. Thanks to an innovative construction with reverse combustion, ceramic grate and an advanced afterburning chamber, this wood boiler achieves an impressive efficiency of up to 91%. The high combustion temperature not only significantly reduces your wood consumption, but also makes the pan soot less, which makes cleaning and maintenance considerably easier. Focus ECO Nature 40 is tested and approved according to strict environmental standards by SP (Swedish Technical Research Institute) - your safety for a clean and gentle combustion.

Advantages of choosing Metro Therm Focus ECO Nature 40

• High efficiency (91 %): Advanced reverse combustion technology gives maximum energy from every wood.
• Economical and environmentally friendly: SP-tested and approved for a clean combustion that saves both wallet and nature.
• User-friendly and ergonomic: All daily maintenance, gauges and controls are easily operated from the front and top of the pan at a comfortable working height.
• Robust construction: Generöst tilltagen fireplace adapted for flexible heating with standard wood.

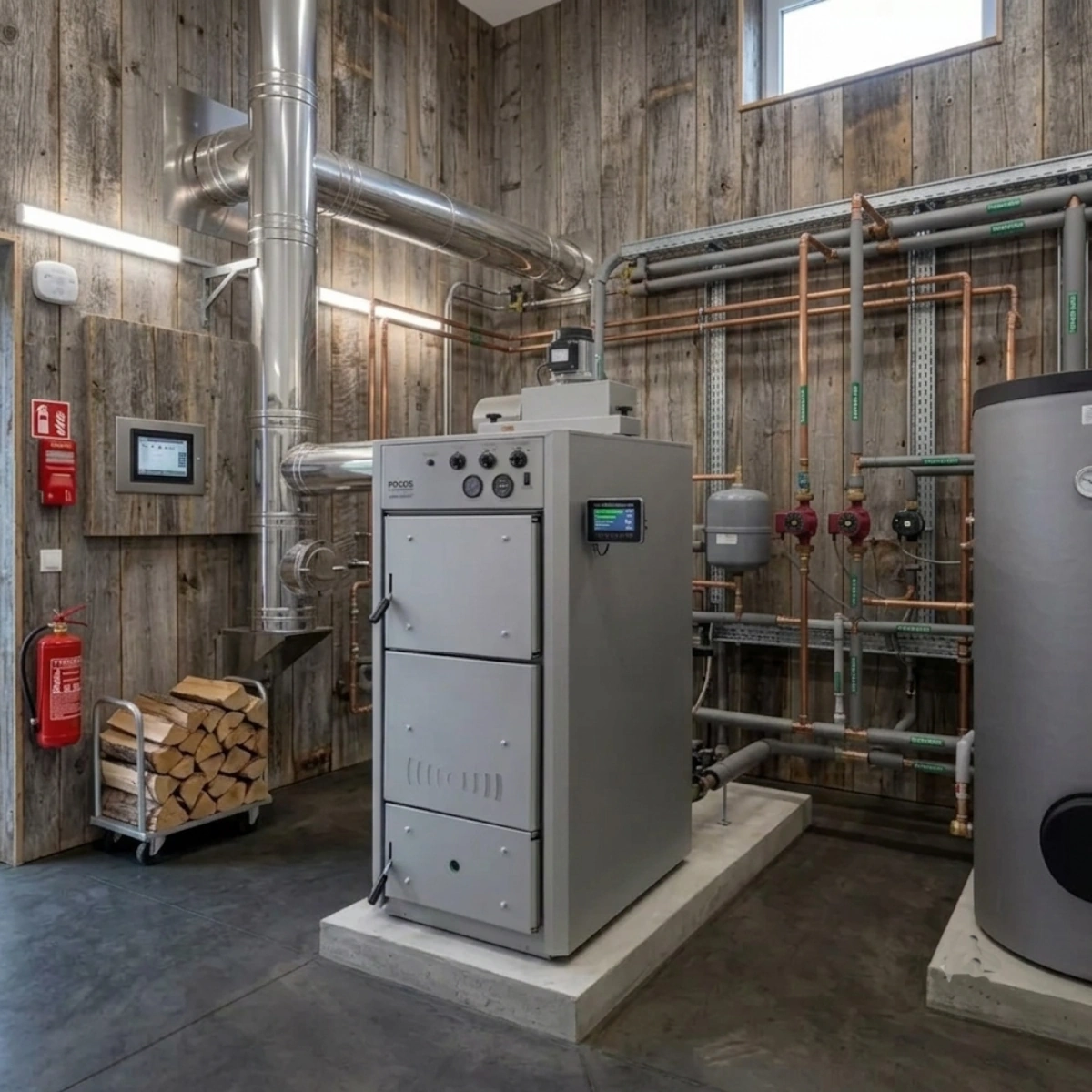

Tips for maximum effect: To make use of the entire heating effect and heat as efficiently as possible, we recommend that the boiler be connected to an accumulator tank of at least 1500 litres. This optimizes the system, provides fewer aging opportunities and reduces maintenance.

Important installation and heating requirements

To ensure optimal operation, long service life of the system and retained warranty, it is important to follow these guidelines during installation and use:

• Wood quality: Use dry wood with a moisture content below 25% and a length of approximately 50 cm.
• Chimney dimensions: At least Diameter 150 mm wide steel pipe, alternatively at least 180x180 mm wide brick chimney (approx. 300 cm²). The chimney height must be at least 5 metres.
• Minimum draft: 0.5 mm VP.
• Flue gas temperature: Should be around 170 °C when the boiler is new to effectively prevent condensation and corrosion in the chimney.

Specifications

• Power (at): 40kW
• Fuel type: Wood
• Pan volume: 120 litres

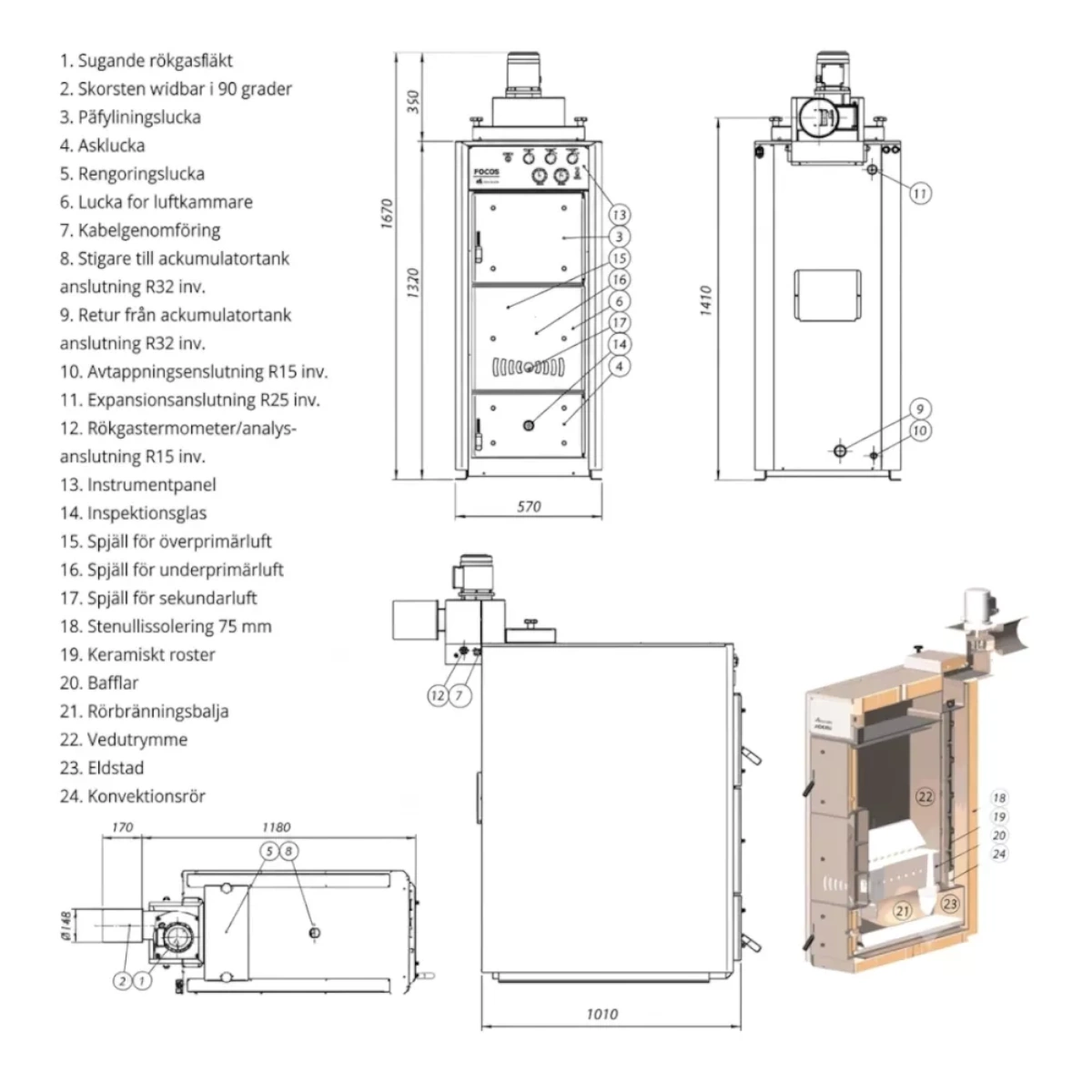

• Dimensions (HxWxD): 1670x570x1160mm
• Fireplace mat (HxWxD): 600x350x550mm
• Construction pressure: 1.5 Pa
• Construction temperature: 100 °C
