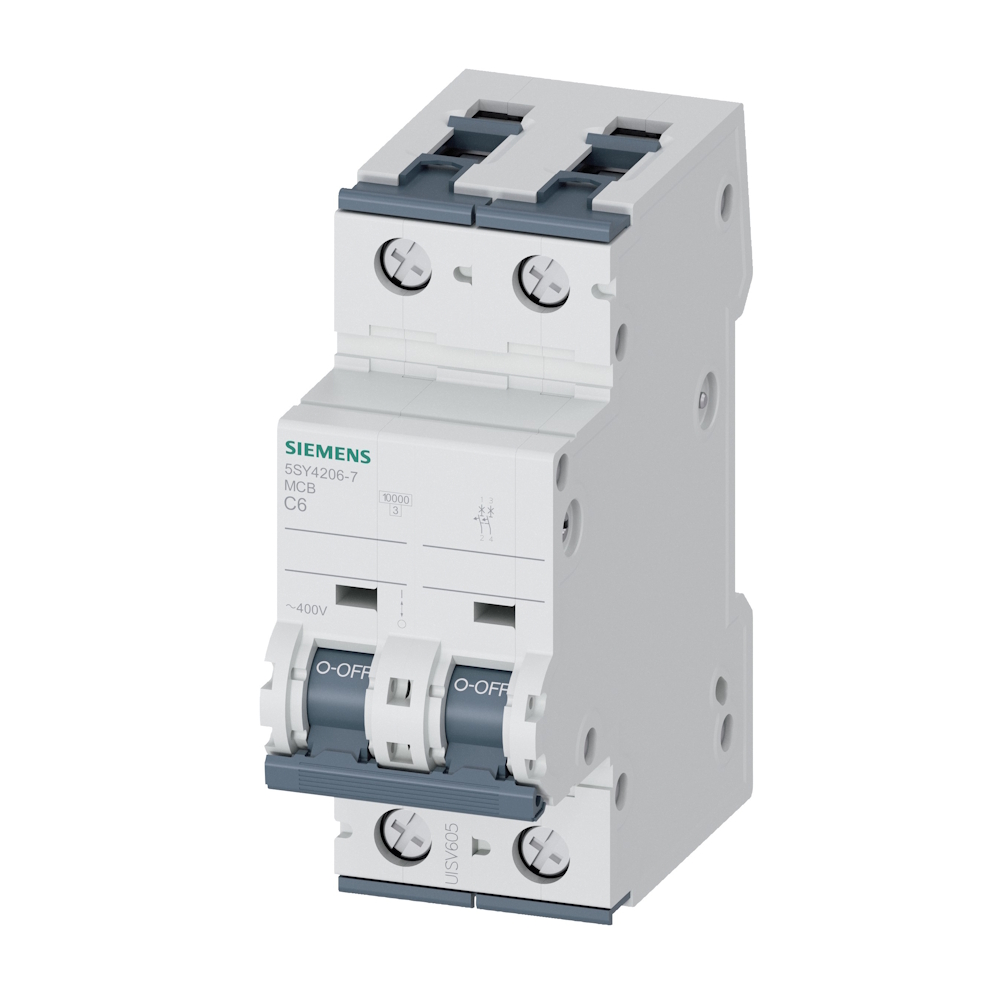

Miniature Circuit Breaker 2Poles C-Curve 6A 10kA 400V IP20 Siemens

Description

This miniature circuit breaker rated at 400V and 10kA, featuring 2 poles, a C characteristic, and a current rating of 6A. It has a diameter of 70mm and is designed for effective circuit protection in various applications.

Technical Information

• Voltage type: AC
• Built-in depth: 70 mm
• Rated current: 6 A
• Rated voltage: 400 V
• Frequency: UN Hz
• Rated insulation voltage Ui: 440 V
• Current limiting class: 3
• Over voltage category: 3
• Pollution degree: 3
• Width in number of modular spacings: 2
• Explosion-proof: No
• Degree of protection (IP): IP20
• Number of protected poles: UN
• Concurrently switching neutral conductor: No
• Connectable conductor cross section solid-core: 0.75-35 mm²
• Connectable conductor cross section multi-wired: 0.75-35 mm²
• Ambient temperature during operating: -40-70 °C
• Flush-mounted installation: No
• Additional equipment possible: Yes
• Number of poles (total): 2
• Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 10 kA
• Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 10 kA
• Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 35 kA
• Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 35 kA
• Rated impulse withstand voltage Uimp: 4 kV
