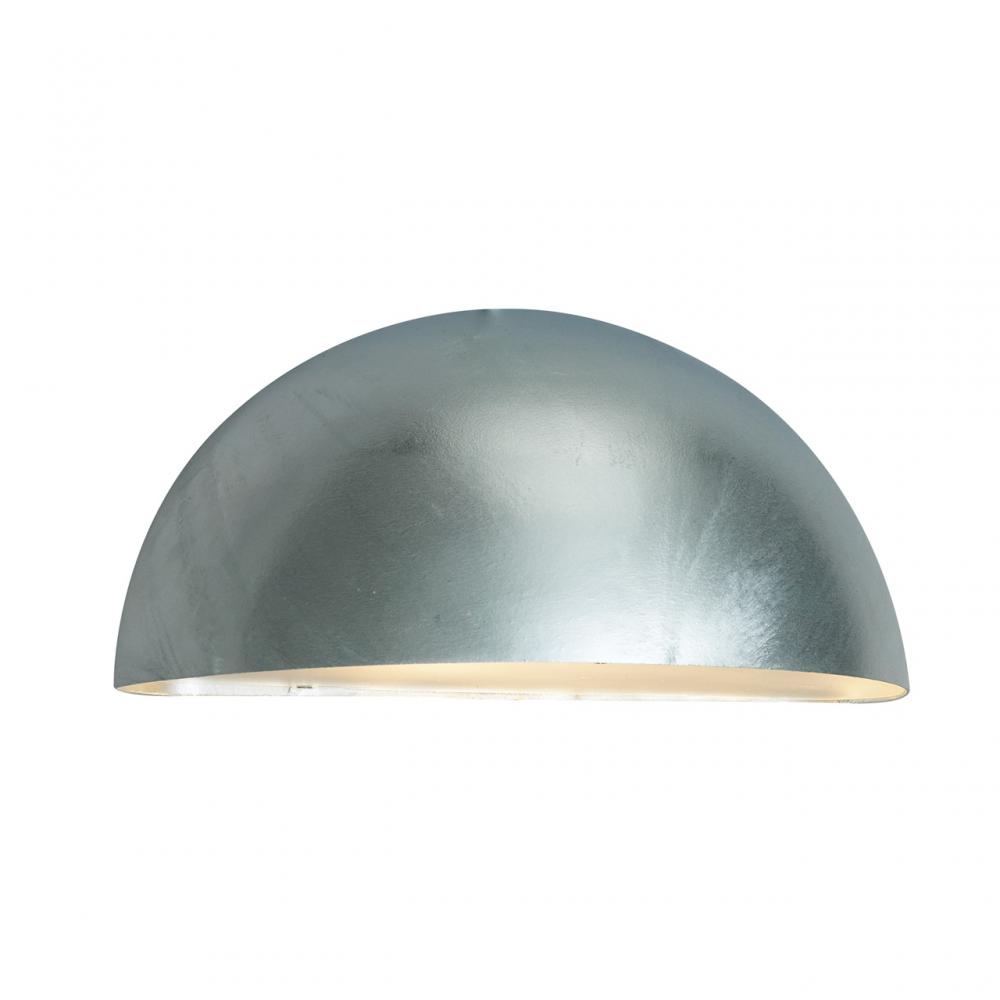

Paris Big Wall Lamp 46W E27 Galvenized Norlys 163GA

Description

Lighting in galvanized sheet metal, Glass in frosted acrylic plastic. 46W E27, IP43 Class I.

Technical Information

• Colour of housing/enclosure/frame: None
• Colour temperature: 2200 - 4000 K
• Nominal luminous flux: 398 lm
• Protection class (IEC 61140): I
• Impact resistance (IK): IK09
• Light distribution: Symmetrical
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Dimmer with push button: No
• Dimming trailing edge (phase cut-off): Yes
• Driver: Not required
• Driver included: No
• Power light source: 46 W
• Power factor: 0
• Energy efficiency class built-in lamps: Other
• Energy efficiency class supplied replacement lamps: A+
• Energy consumption index for energy supply (EEI): Other
• Colour rendering index (CRI/Ra): 80-89
• Glowing wire test (IEC 60695-2-11): None
• Highest energy efficiency class for replacement lamps: A++
• Protection class (IP): IP43
• Lowest energy efficiency class for replacement lamps: D
• Lamp holder/socket: E27
• Suitable for built-in/recessed mounting: No
• Suitable for lamp power: 8 - 8 W
• LED nominal current at constant current: 0 - 0 mA
• Conductor area: 2.5 mm²
• Light color: White
• Light distributor/diffuser: None
• Light source: Incandescent lamp
• Light distribution angle: >80° (extremely wide beam)
• Light outlet: Indirect
• Rated voltage: 220 - 240 V
• Material housing/enclosure/frame: Steel
• Material dome/cover: Plastic (matt/satin)
• Max. system power: 8 W
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Insulation cover: No
• Rotator design: None
• Reflector: None
• Protection level (NEMA): Other
• Voltage type: AC
• Connection type: Other
• Cable routing type: Suitable for through-wiring
• Surface type: Matt

Specification

• Dimensions (WxHxD): 140×160×280 mm
