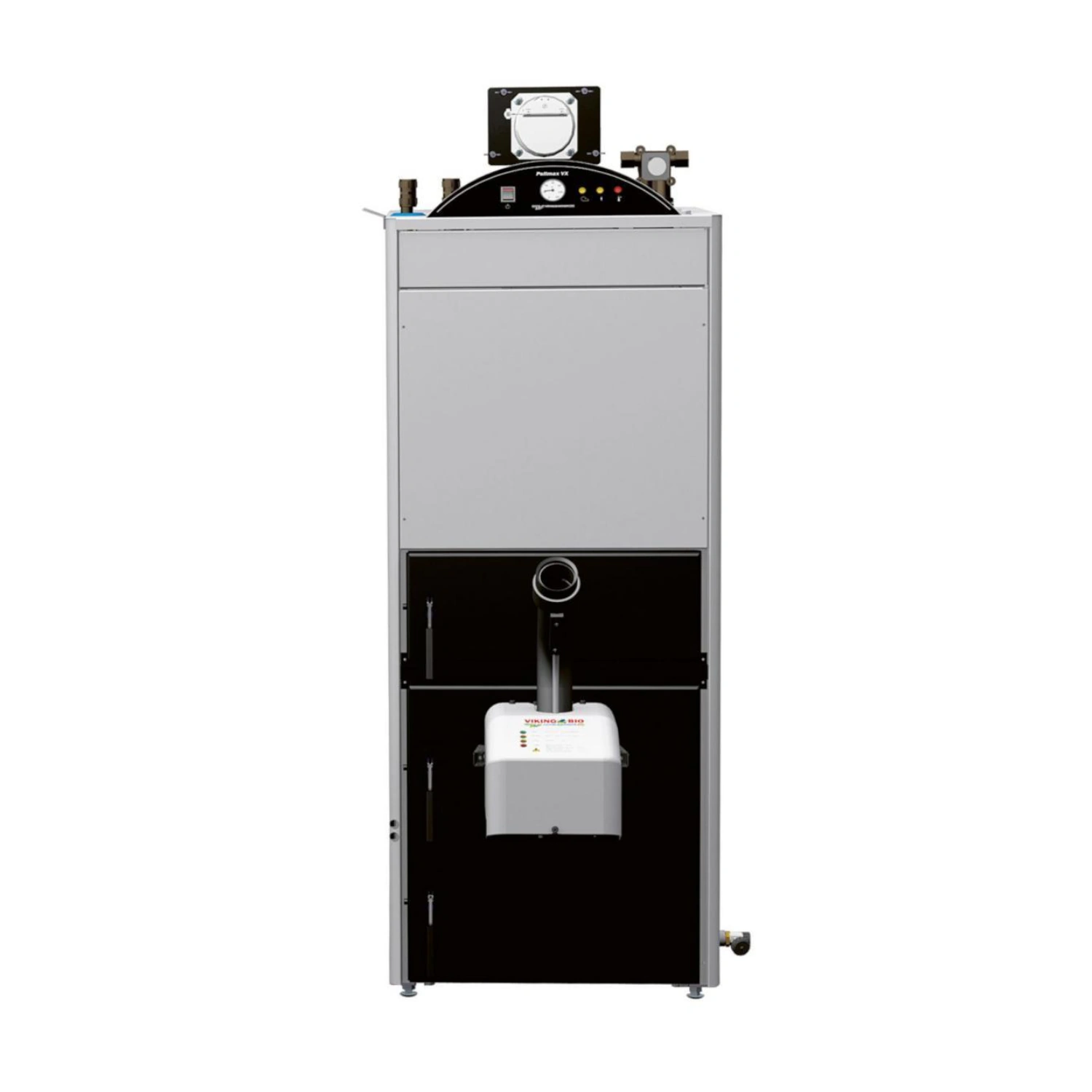

Pellet Boiler Pellmax VX IP21 25kW Värmebaronen

Description

Complete pellet boiler, 25kW with hot water exchanger and 9kW electric backup. Large ash volume means long intervals between sweeping, also easy to sweep from the front. Different pellet burners fit in the boiler, burner not included. Pellmax VX is controlled by mechanical thermostats that switch on the pellet burner (or electric heating) according to the temperatures you have chosen. Should the pellets run out, the electric heating automatically comes in. The panel can be read which type of energy is in operation.

Benefits of choosing the Pellet Boiler Pellmax VX

• Automatic electric backup: 9 kW electric heater (in two stages: 4.5 + 4.5 kW) comes in immediately if the pellets run out.
• Instant hot water: Integrated copper exchanger minimizes stagnant water and reduces energy losses.
• Compact design: Only 1,480 mm high - fits in boiler rooms and basements with low ceilings.
• Minimal maintenance: 25-liter ash box and vertical tube pipe system provide long intervals between sweepings.

Enormous hot water capacity with heat exchanger

The heat exchanger can produce large amounts of hot water, the water is heated as it passes through the exchanger on its way to the tap.

Compact and easy to install

The boiler has a low height and is suitable for low ceilings. All connections are easily accessible.

Primary area of application

• Villas and single-family houses: Developed for small houses, detached villas and semi-detached houses with a water-based heating system (radiators/elements or underfloor heating).
• Medium to large living spaces: With a pellet output of up to 25 kW (20 kW nominal output), the boiler is suitable for households with a heating surface of approximately 120–280 m² (depending on the insulation level of the house, geographical location and energy requirements).
• Year-round heating and domestic hot water: The boiler covers both the house's heating needs and continuous production of domestic hot water via its integrated flow exchanger.

Warranty

Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden.

Specifications

• Model: Pellmax VX
• Power pellets / electricity: 25 kW / 9 kW (4.5 + 4.5 kW)
• Nominal power (80–60°C / 50–30°C): 20 kW / 20 kW

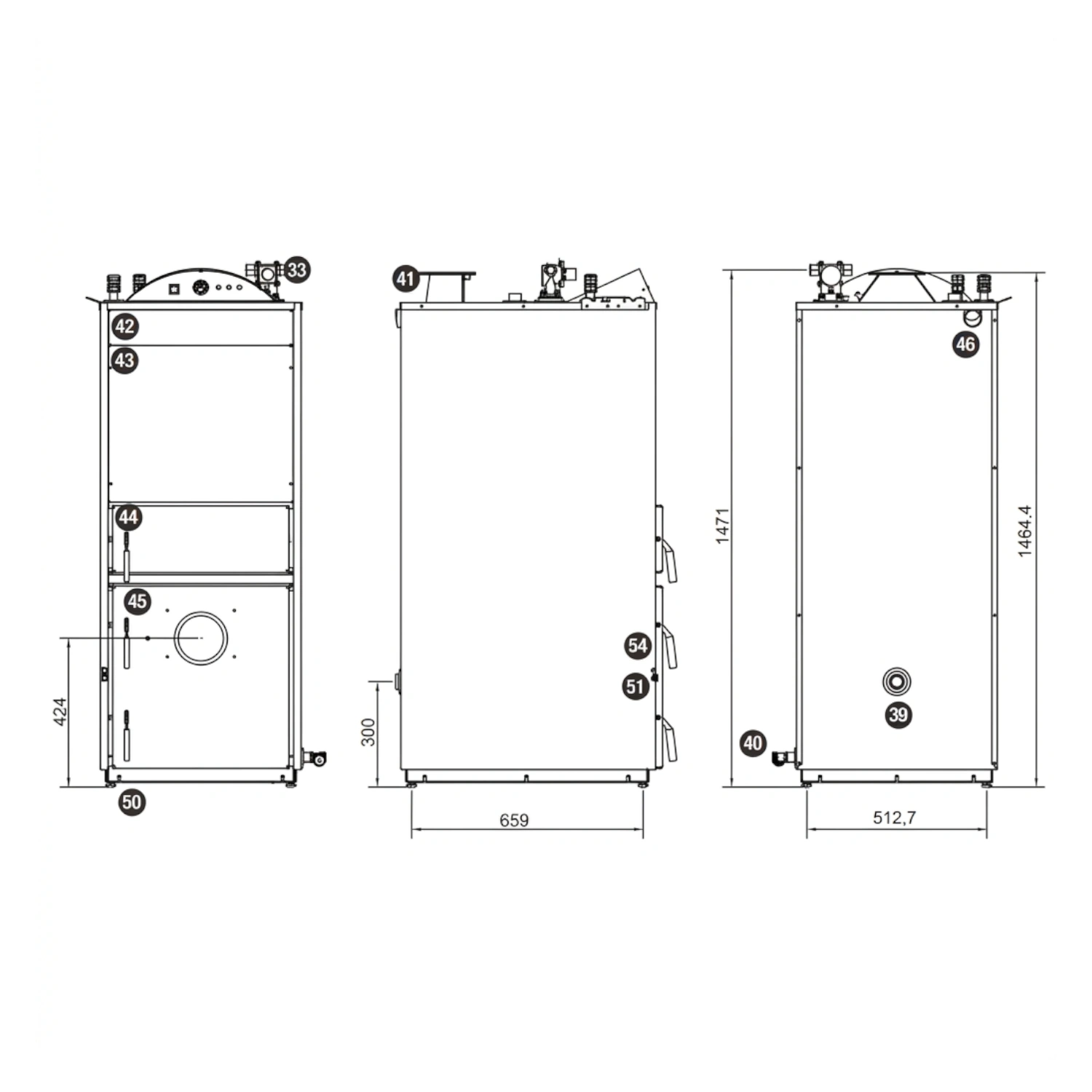

• Dimensions (W × D × H): 530 × 710 × 1,480 mm
• Burner opening: Diameter 130 mm
• Boiler volume / Exchanger volume: 195 liters / 2 liters
• Ash box volume: 25 liters
• Weight (empty / filled with water): 275 kg / 470 kg
• Flue gas flow (at 20 kW): 11.9 g/s
• Pipe connection (Inlet / Return): 22 mm / 22 mm external
• Working pressure (min / max): 50 kPa / 3 bar
• Operating temperature: 30–90 °C
• Electrical connection / Fuse: 400V 3N~ 50 Hz / 16 A (13 A rated current)
• Protection class: IP21
• Scope of delivery: Factory assembled with filling and draining valve
