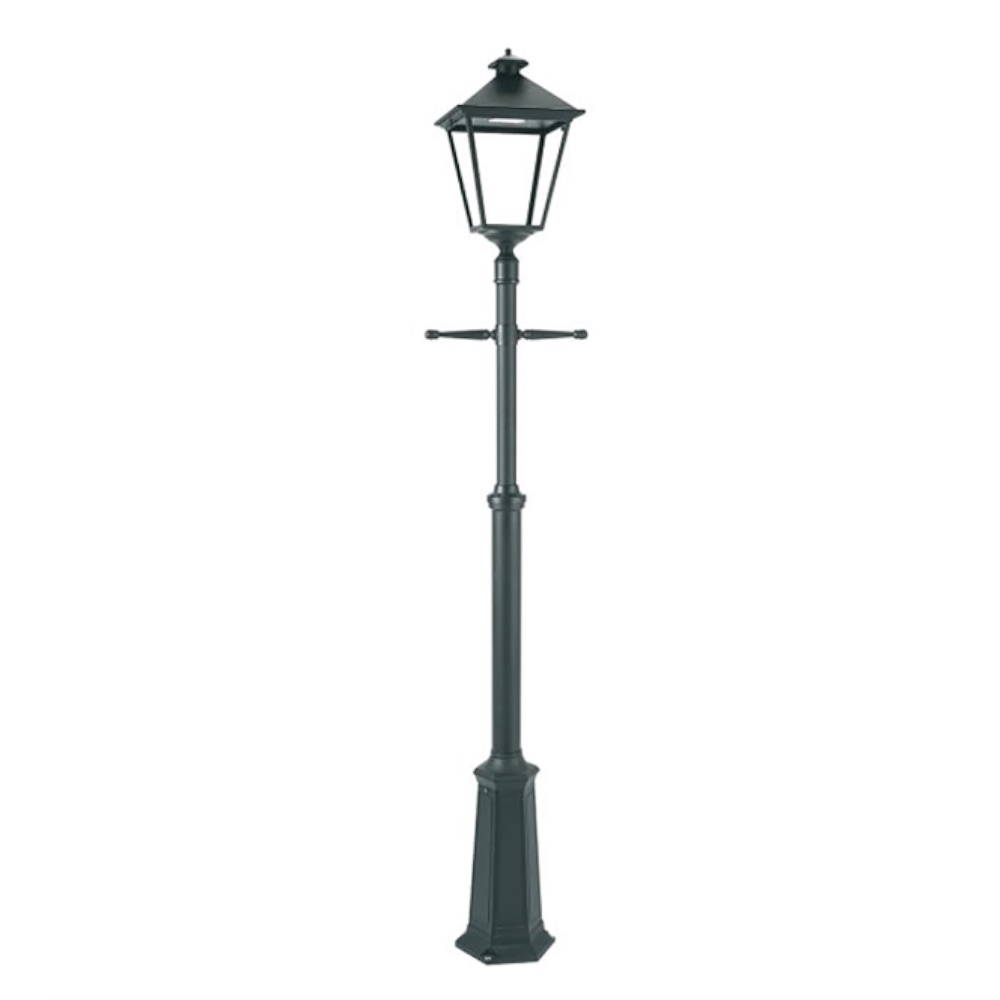

Post London Black LED 17.5W 4000K Norlys 4125B

Description

Telescopic post series made of cast aluminum, painted. Available in two colors. Available with one, two or three lamp housings. Two different sizes of lamp housings. Glass in clear polycarbonate. Various mounting devices are available as accessories. There are also models for wall and ceiling in this series.

Technical Information

• Nominal luminous flux: 1392 lm
• Color temperature: 4000 - 4000 K
• Color housing/enclosure/frame: Black
• Suitable for pole diameter from/to: 50 - 50 mm
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Width: 320 mm
• CLO: Yes
• Dimmer with push button: No
• Dimmer function missing: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phase cut-off): No
• Dimming DALI: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phase cut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Manufacturer-specific dimming; No
• Dimming Zigbee; No
• Driver: LED driver (constant voltage)
• Driver included Yes
• Power factor 0.9
• Energy efficiency class built-in lamps A++, A+, A (LED)
• Energy efficiency class light source: (EU 2019/2015) E
• Colour fastness (McAdam ellipse): SDCM3
• Colour rendering index (CRI/Ra): 80-89
• Remote control: None
• Height/depth: 320 mm
• Adjustable optics: No
• Protection class (IP): IP54
• Lamp holder/socket: Other
• Suitable for lamp power: 17.5 - 17.5 W
• Suitable number of light sources: 1
• Length: 2790 mm
• Cable length: 2.3 m
• Conductor cross-section: 2.5 mm²
• Light colour: White
• Light distributor/diffuser: None
• Light source: LED (replaceable)
• Luminous efficiency: 79.5 lm/W
• Rated voltage: 220 - 240 V
• Housing/enclosure/frame material: Aluminum
• Cover material: Without cover/cover
• Max. system power: 17.5 W
• With connection cable: Yes
• With light source: Yes
• With dimming program control: No
• With radio control: No
• Nominal ambient temperature according to: IEC 62722-2-1 25 - 25 °C
• Protection class (IEC 61140): II
• Protection level (NEMA): Other
• Voltage type: AC
• Connection type: Other
• Type of wiring: Through-wire included
• Replaceable driver: Yes
• Surface treatment: Powder coated
• Food Contact Material: No
• REACH: No
