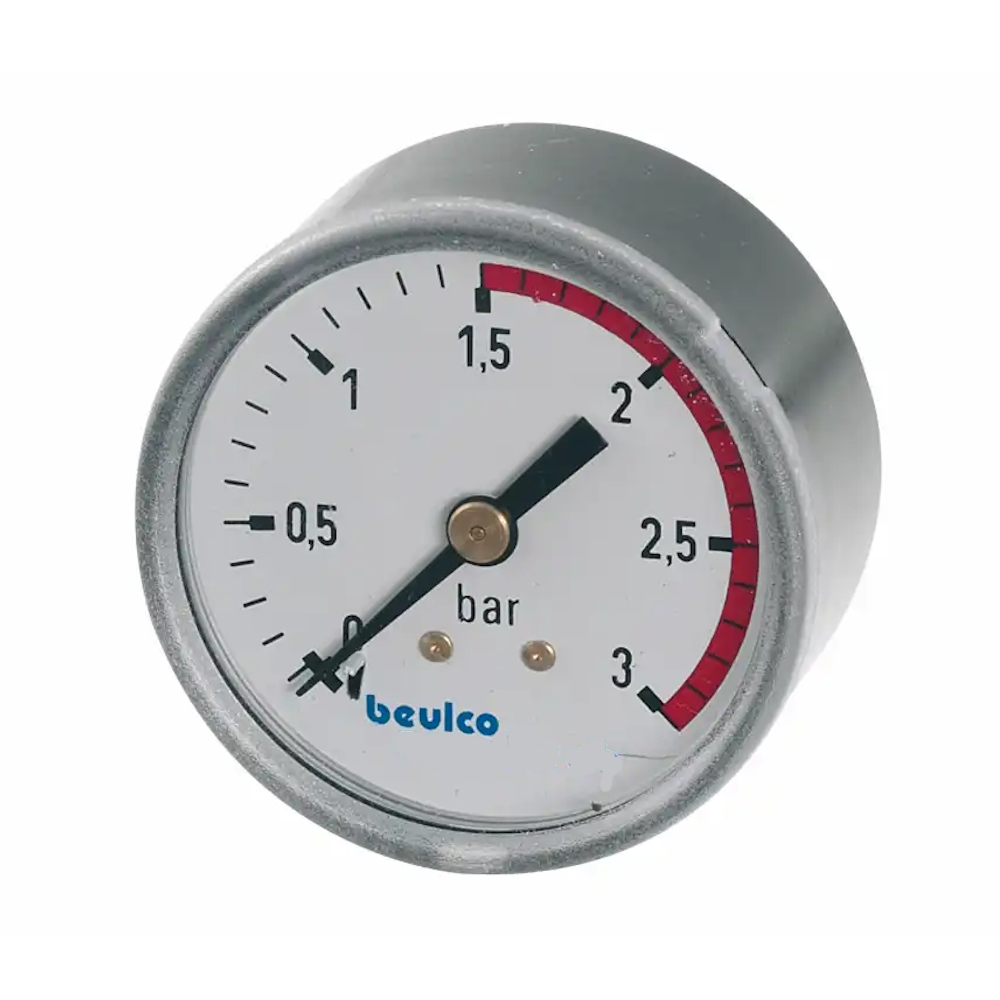

Pressure Gauge 0-3Bar G8 Beulco

Pressure gauge Ansl G8 centric, red marked from 1.5.

Pressure Gauge 0-3Bar G8 Beulco

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Pressure Gauge 0-3Bar G8 Beulco

Pressure gauge Ansl G8 centric, red marked from 1.5.

Description

Pressure gauge Ansl G8 centric, red marked from 1.5.

Specifications

  • Dimension: G8
  • Size: 50mm
  • Function: 0-3 bar, red marked from 1.5
  • Design: external thread back
  • Material: plastic, brass
  • Material housing/enclosure/frame: Plastic
  • Material process connection: Brass
  • Dimension process connection: 1/4"
  • Connection: External thread G, cylindrical (ISO 228-1)
  • Connection location: Back
  • Pressure unit: mbar
  • Measuring range: 0 - 1.5
  • Accuracy class according to EN: 2.5%
  • Window material: Plastic
  • Pressure gauge mount: Direct
  • Max. ambient temperature: 60°C
