Pump Dispenser Asso A Jet 82M 1-Phase 3.8A 0.60kW 230V Beulco

Description

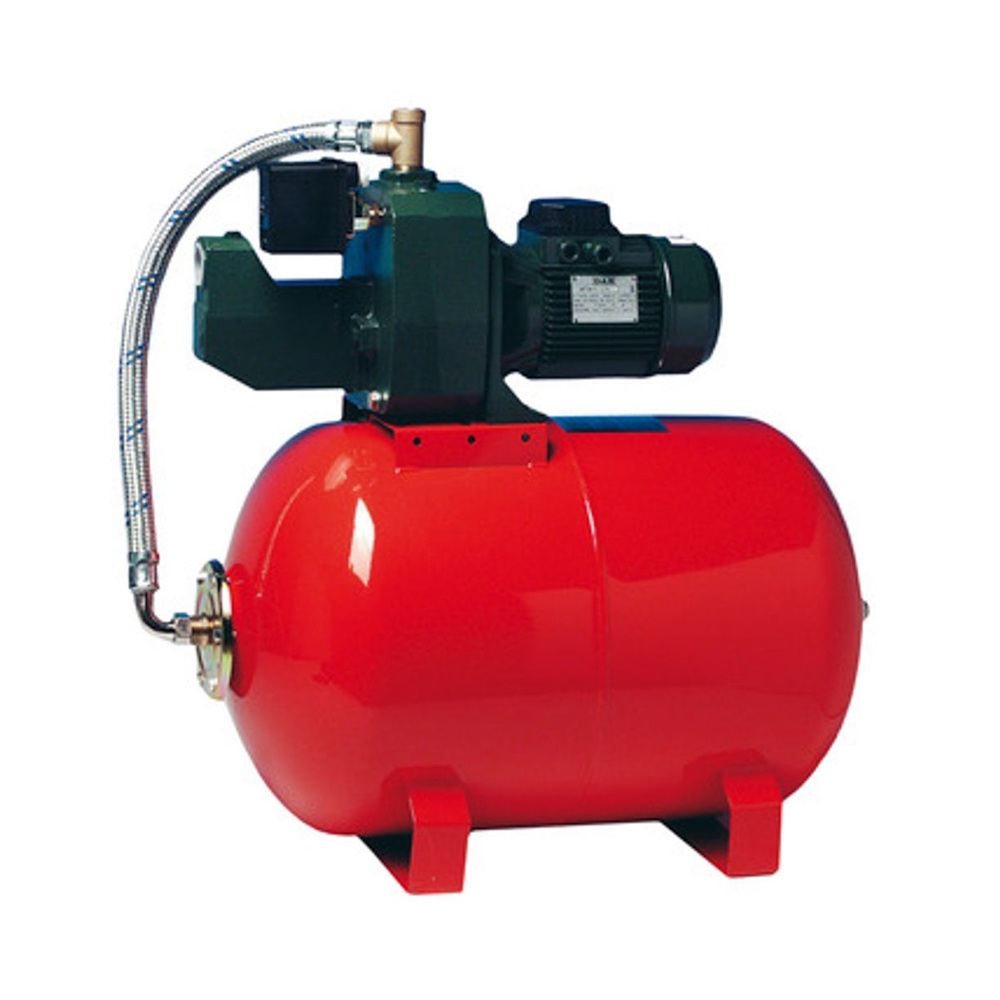

Pump Dispenser with self-priming jet pump. 1-phase 220V with 5L hydropress tank. For holiday homes, villas, etc.

Technical Information

• Dimension: G25
• Size: 5L
• Pressure/Flow/Temp: Max 60 l/min, max 4.7 bar
• Power/Electrical data: 230V 0.60kW 3.8A
• Function: For drinking water
• Version: With 5L tank
• Color: Green/red
• Surface treatment: Painted
• Material: Cast iron/steel sheet
• Other info: Internal thread
• Material pump housing: Cast iron
• Material quality pump housing: Cast steel
• Material impeller/pump wheel: Other
• Nominal flow (BEP): 3.6 m³/h
• Max. flow capacity: 3.6 m³/h
• Max. static head: 47 m
• Max. suction head: 7 m
• Max. working pressure: 8 bar
• Electrical connection: Connection cable with plug
• Cable length: 2 m
• Rated voltage: 1 - 230 V
• Number of phases: 1
• Frequency: 50 Hz
• Rated current: 3.8 A
• Input power per motor (P1): 0.6 kW
• Insulation class (IEC): F
• Media temperature (continuous): 0 - 35 °C
• Ambient temperature: 0 - 40 °C
• Connection inlet side: Internal thread G, cylindrical (ISO 228-1)
• Connection dimension inlet side: DN 25
• Connection standard inlet side: Other
• Connection outlet side: Internal thread G, cylindrical (ISO 228-1)
• Connection dimension outlet side: DN 25
• Outer pipe diameter outlet side connection: 25 mm
• Connection standard outlet side: Other
• Type of drive unit: Electric
• Protection class (IP): IP44
• With automatic start/stop: No
• With pressure tank: Yes
• Volume pressure tank: 5 l
• Material pressure tank: Steel

Specification

• Dimensions (WxHxD): 300×635×430 mm
