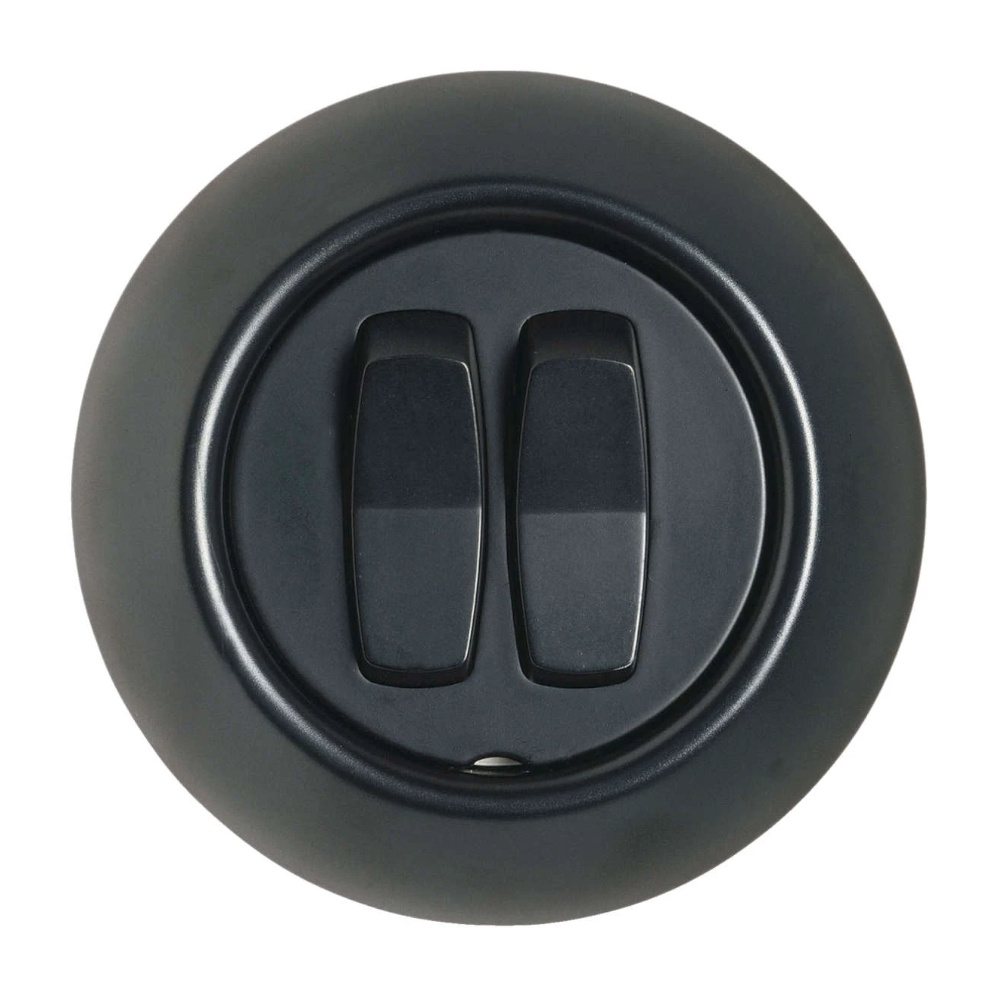

Renova Rocker Switch 2 Circuits 16A 250V IP20 Black Schneider Electric

Description

Schneider Electric Renova switch is a complete product in black color. This is a 1-pole 2-way switch. The device's fixing mode is by claws, by screws. And its rated current is 16A. With an embedding depth of 18 mm, whose projecting depth is 19 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. It reaches IP20 degree of protection too. Its connection terminals are screw terminals. Being made of PC/ABS material, this switch is quite reliable and resistant. What's more, it well satisfied the standard of EN 60669-1. It obtained CE, FIMKO, NEMKO, SEMKO certificate as well. Being environmentally friendly, this switch is a green premium product too. And it is mercury free and heavy metal free, which takes care of the environment and your health as always. This switch is SVHC (substances of very high concern) free too. From classic installation electronics to multimedia outlets, Renova combines a sleek older design with unique accessories that all meet today's demands in terms of safety and comfort. Smart options such as wallpaper protection or simple click-in technology for recessed or surface mounting further simplify installation.

Technical Information

• Nominal voltage: 250 V
• Mounting method: Flush mounted (plaster)
• Assembly arrangement: Basic element with full cover plate
• Method of operation: Rocker/button
• Rated current: 16 A
• Type of fastening: Mounting with claw and screw
• Wiring system: Series switch
• Suitable for degree of protection (IP): IP20
• With mounting plate: No
• Connection type: Screwed terminal
• Illumination: No
• Built-in depth: 18 mm
• Feedback-signal contact: No
• Number of rockers: 2
• Switching current for fluorescent lamps: 16 AX
• Push button switch: No
• Washing machine switch: No
• Label space/information surface: No
• Number of modules (module system): 0
• IFTTT support available: No
• Min. depth of built-in installation box: 22 mm
• Compatible with Apple HomeKit: No
• Compatible with Google Assistant: No
• Compatible with Amazon Alexa: No
• Heating switch: No
• Anti-bacterial treatment: No

Specifications

• Color: Black
• RAL-number (similar): 9005
• Halogen free: Yes
• Surface protection: Untreated
• Material quality: Thermoplastic
• Material: Plastic
• Surface finishing: Matt
• Width: 71 mm
• Height: 71 mm
• Depth: 37 mm
