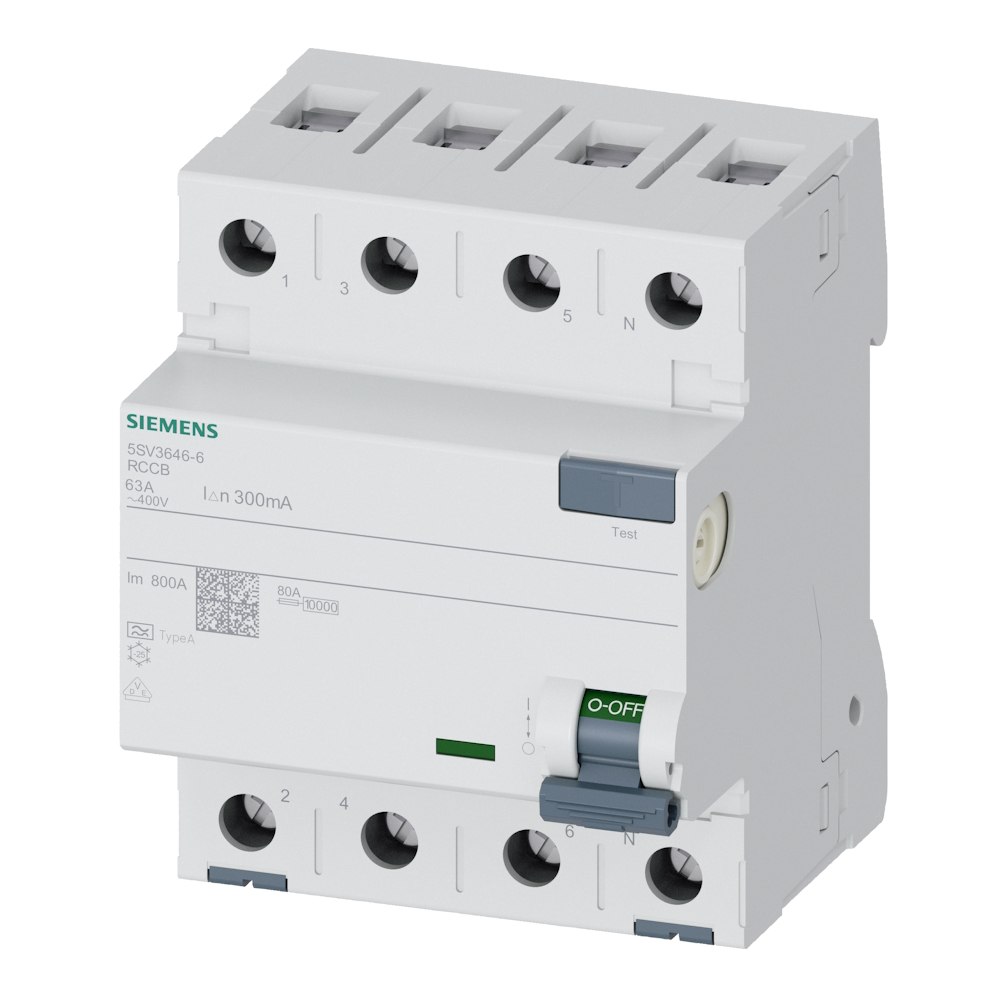

Residual Current Circuit Breaker 4Poles A-Type 63A 300mA 400V IP20 Siemens
Residual current operated circuit breaker, 4poles, type A, with a rated current of 63A, 300mA, and an AC rated voltage of 400V.
Watch this product and we will notify you once it is back in stock.
Residual Current Circuit Breaker 4Poles A-Type 63A 300mA 400V IP20 Siemens
Description
Residual current operated circuit breaker, 4poles, type A, with a rated current of 63A, 300mA, and an AC rated voltage of 400V. This product is designed to provide reliable protection against residual currents in electrical systems.
Technical Information
- Mounting method: DIN rail
- Built-in depth: 70mm
- Rated current: 63A
- Rated voltage: 400V
- Rated insulation voltage Ui: UN V
- Number of poles: 4
- Rated fault current: 0.3A
- Leakage current type: A
- Selective protection: No
- Short-circuit breaking capacity (Icw): 10kA
- Surge current capacity: 1kA
- Pollution degree: UN
- Width in number of modular spacings: 4
- Short-time delayed tripping: No
- Explosion-proof: No
- Frequency: 50Hz
- Degree of protection (IP): IP20
- Connectable conductor cross section solid-core: 0.75-35mm²
- Connectable conductor cross section multi-wired: 0.75-35 mm²
- With interlocking device: Yes
- Ambient temperature during operating: -25-45 °C
- Additional equipment possible: Yes
- Rated impulse withstand voltage Uimp: UN kV
