Swim & Fun Spa Heater Electric 2kW

Description

Create the best conditions for a perfectly tempered spa bath regardless of the season. This reliable and compact 2 kW electric heater from Swim and Fun is specially developed for smaller spas, whirlpools and wilderness baths with a total water volume of up to 1,000 liters. With its elegant black design and high functionality, the heater can be seamlessly integrated into the existing filter system to deliver a consistent and comfortable temperature.

Efficient heating and reliable frost protection for the Nordic climate

This electric heater is designed to handle challenging weather conditions and works excellently in ambient temperatures down to -5 degrees. In a well-insulated 1,000-liter spa equipped with a thermal cover, the water temperature increases by approximately 0.7 degrees per hour. The built-in thermostat can be flexibly adjusted between 0 and 45 °C, making it easy to set the exact temperature desired for a relaxing moment or to keep the system frost-free during the winter season.

Integrated flow switch for high operational reliability

Safety is a top priority thanks to a built-in mechanical flow switch (Flow Switch). This smart function detects the water flow and only activates the heating element when the circulation is high enough, effectively counteracting the risks of overheating and boiling dry. For the flow switch to function correctly, a continuous water flow of at least 3,600 liters per hour is required.

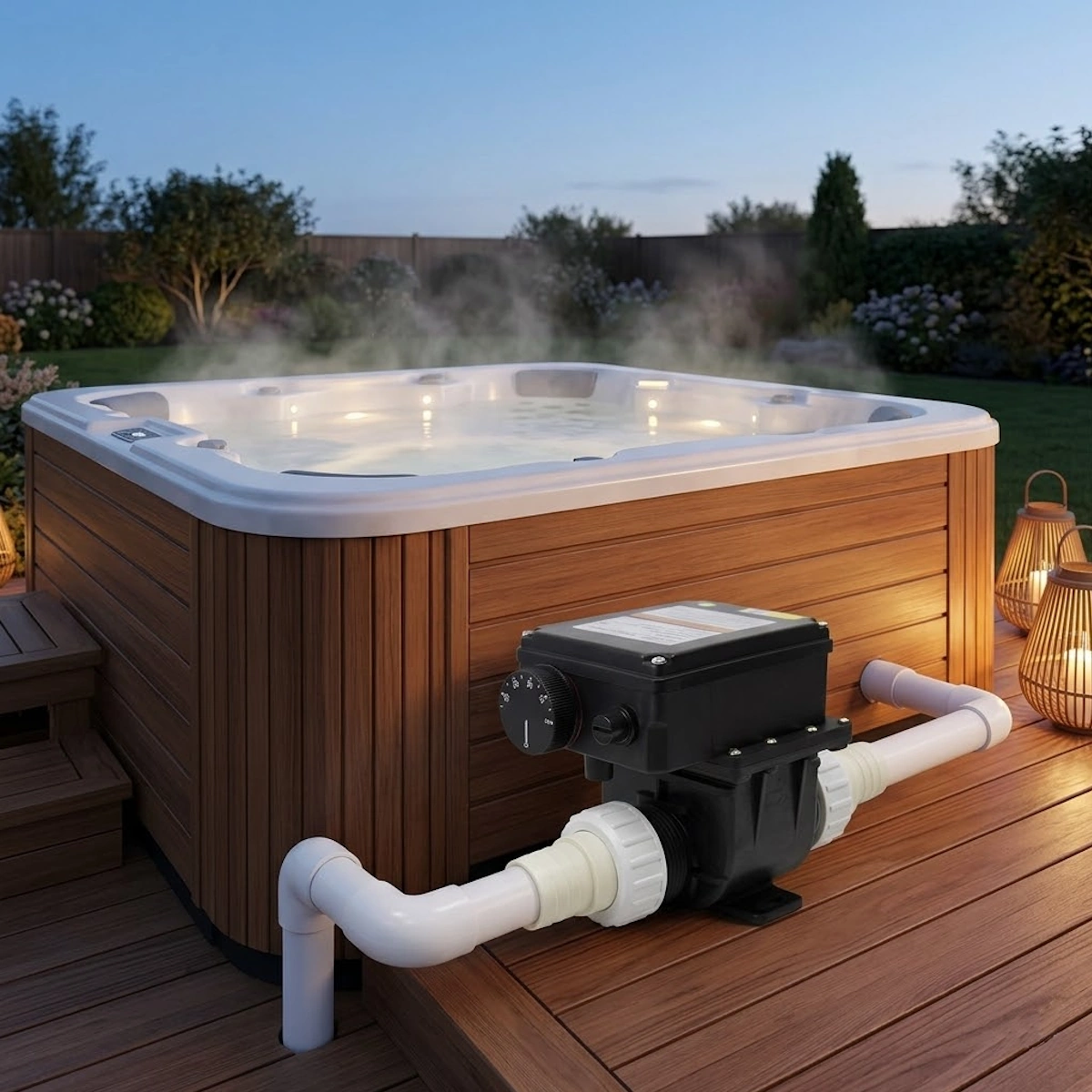

Versatile installation options for both indoor and outdoor use

The heater offers flexible installation options and is approved for installation both indoors and outdoors. When placed outdoors, it is important that the unit is protected in a completely waterproof and weatherproof box. The connections consist of 50 mm adhesive sleeves on both inlet and outlet for a tight and stable connection to the pipe system.

• Please note that the installation must be carried out by an authorized electrician to ensure safe, secure and correct operation.

Technical specifications

• Power: 2.0 kW
• Voltage: AC 220-240 V, 50/60 Hz
• Current: 10 A
• Maximum working pressure: 0.035 MPa
• Protection class: IP45
• Capacity: +0.7 ºC per hour per 1000 liters of water

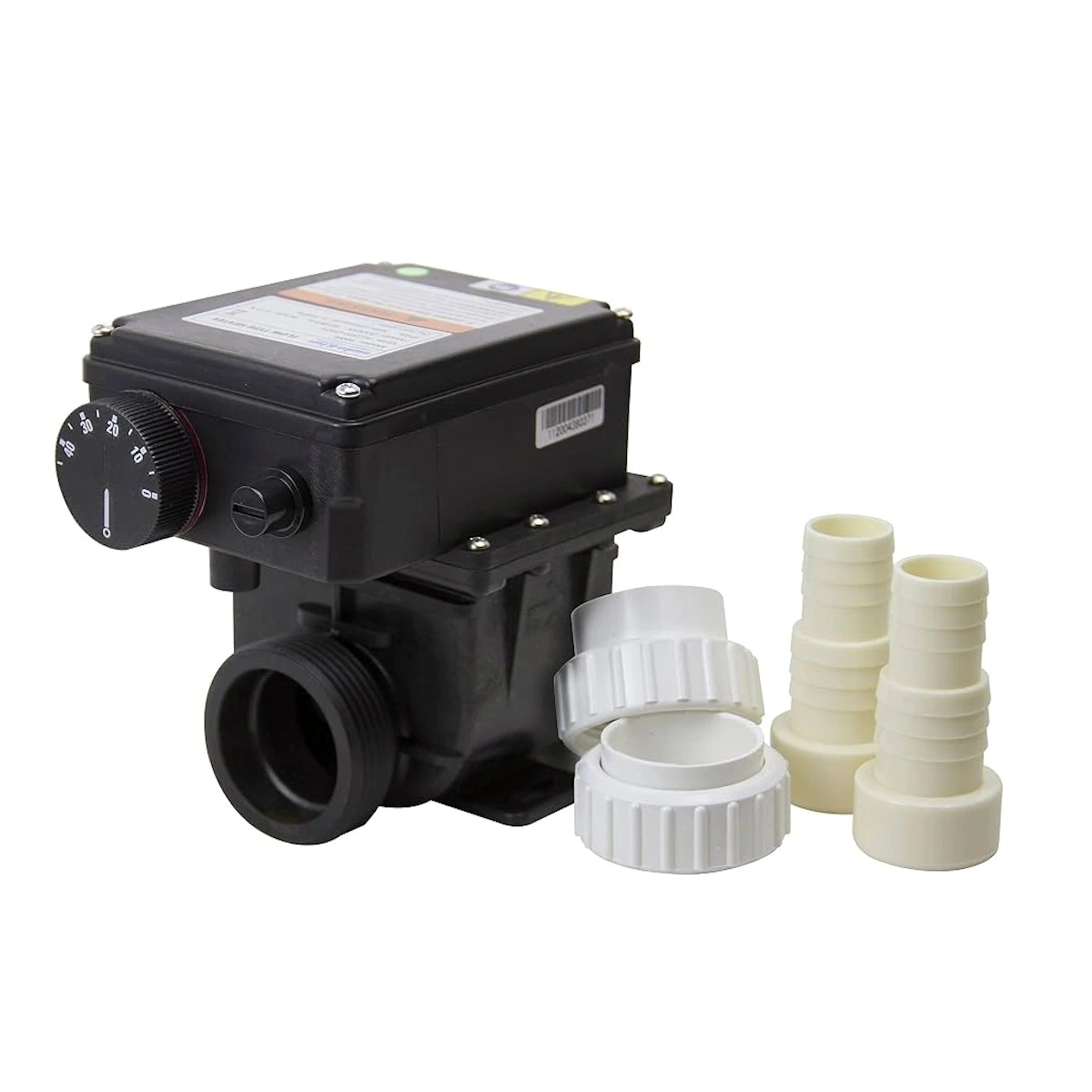

• Connection: 50 mm glued sleeve on inlet and outlet
• Thermostatic control: 0 to 45 °C
• Minimum flow requirement: 3,600 liters per hour
