Swim & Fun 60x305cm Solar Heating Panel

Description

Enjoy a wonderfully temperate pool water for a significantly longer period with an environmentally smart solution. This classic and efficient solar collector from Swim and Fun can raise the water temperature in your pool by between 4 and 6 degrees completely using pure solar energy. The system is delivered as a complete system that is both easy to handle and install, making it a perfect choice for those who want to maximize the joy of the pool during the summer months.

Environmentally friendly pool heating and smart accessories

The solar collector is made of a robust, black plastic material that effectively captures the sun's rays and transfers the heat directly to the flowing pool water. To maintain the heat built up and achieve the best possible results, it is recommended to combine the panel with a pool cover or thermal protection at night, as this prevents the energy from evaporating when the air gets cooler. For optimal control over the water flow, it is also a good idea to connect a bypass kit (article number 1572). With this accessory, you can easily divert the water circulation away from the solar collector on cold days or at night, so that the pool water does not cool down when the sun is not there.

Flexible mounting options and modular design

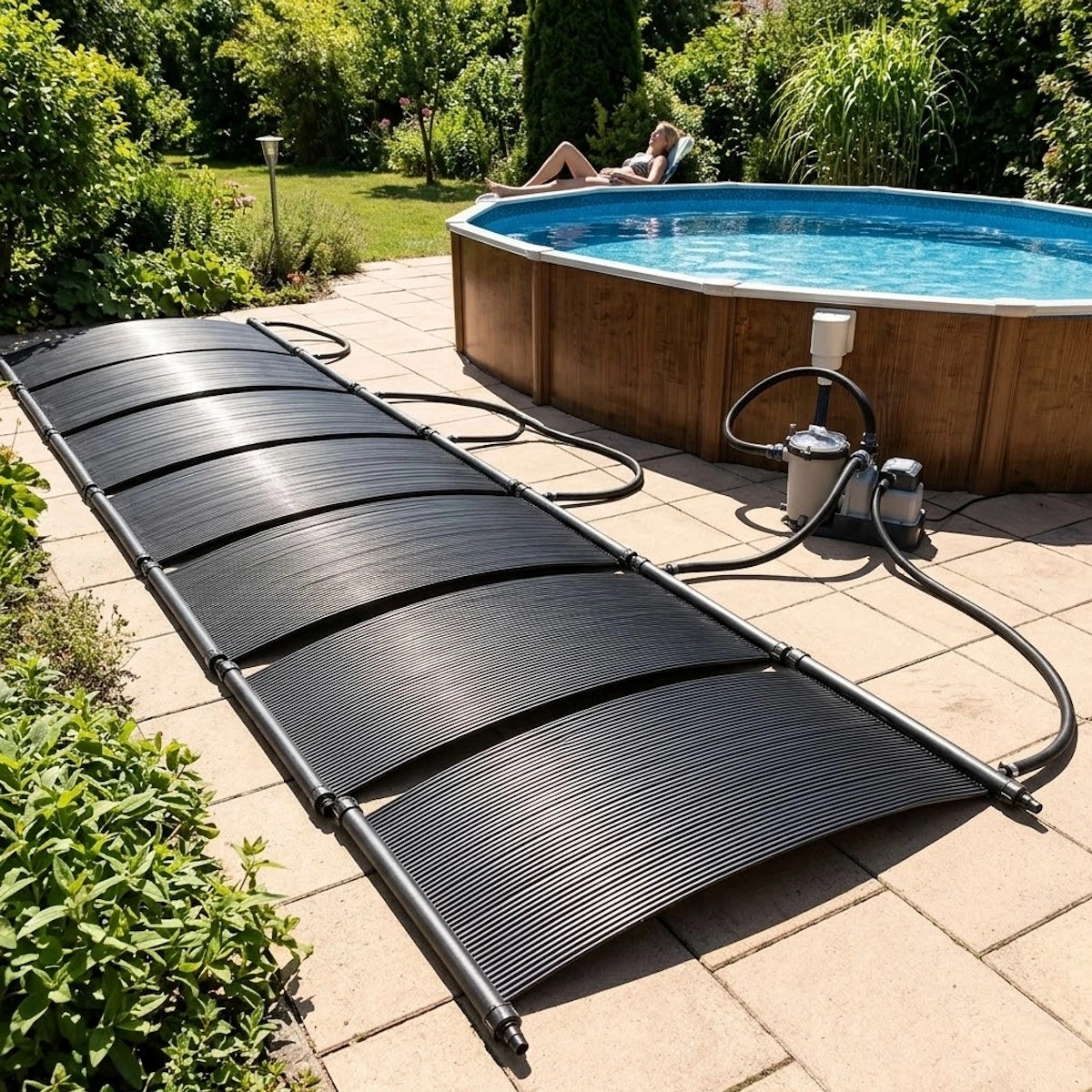

The panel's versatile design means that it can be placed in several different places in the garden. The solar collector can be advantageously mounted flat on the ground, hung on a fence or installed on a roof. Each individual panel measures 0.6 x 3.05 meters, and the complete package provides an excellent base. If there is a need for higher capacity for larger water volumes, the system is fully modular, meaning that multiple panels can be easily connected in series to achieve the desired effect.

Sizing guide for the right number of panels

The number of panels needed is primarily determined by the shape, size and location of the pool. Below is a guide to help you choose the right number for your specific pool model.

Round Above Ground Pools

• Diameter up to 4.6 meters: 2 panels
• Diameter from 5.5 to 7.3 meters: 2 to 4 panels
• Diameter of 8.2 meters: 4 panels

Oval Above Ground Pools

• Dimensions up to 3.7 x 7.3 meters: 2 panels
• Dimensions from 3.7 x 8.5 meters up to 4.9 x 7.6 meters: 2 to 4 panels
• Dimensions from 4.9 x 9.8 meters up to 5.5 x 10.4 meters: 4 panels

Inground Pools

• Dimensions up to 4.6 x 9.1 meters: 4 panels
• Dimensions up to 4.9 x 11.0 meters: 6 panels
• Dimensions up to 6.1 x 12.2 meters: 8 panels

Technical specifications

• Material: Durable plastic
• Color: Black
• Dimensions per panel: 60 x 305 cm (Total capacity equivalent to 6.1 x 0.6 meters)
• Area of use: Freestanding pools and in-ground pools according to guide
• Expected temperature increase: 4-6 degrees Celsius under optimal solar conditions
