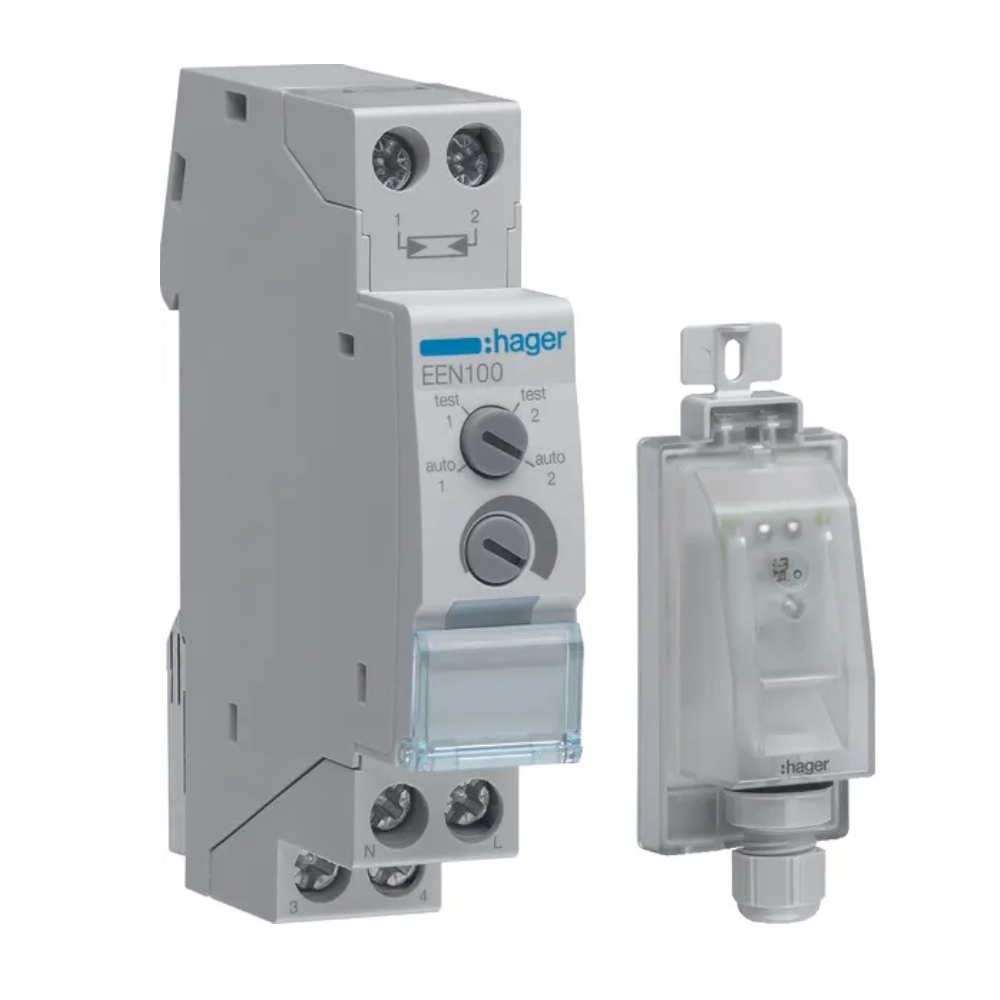

Twilight Switch 1-Channel 10A 230V IP20 Hager

Light relay on DIN rail with external sensor.

Twilight Switch 1-Channel 10A 230V IP20 Hager

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Twilight Switch 1-Channel 10A 230V IP20 Hager

Light relay on DIN rail with external sensor.

Description

Light relay on DIN rail with external sensor.

Technical Information

  • Mounting method: DIN rail
  • Installation depth: 17.8 mm
  • Rated voltage: 230 V
  • Rated frequency: 50-60 Hz
  • Width in number of module distances: 1
  • Rated voltage light sensor: 230 V
  • Max. switching current (cos phi = 0.6): 10 A
  • Max. bulb load: 2300 W
  • Max. conductor length light sensor: 100 m
  • Max. fluorescent tube load: 1000 VA
  • Max. fluorescent tube load (Duo circuit): 1000 VA
  • Max. fluorescent lamp load (parallel compensated): 1000 VA
  • With programmable night switch-off: No
  • Protection degree (IP) light sensor: IP55
  • Push button input: No
  • Protection degree (IP): IP20
  • Rated switch current: 10 A
  • Brightness value setting range: 5-2000 lx
  • Protection class light sensor: II

Measure

  • Height: 83 mm
  • Width: 17.8 mm
  • Depth: 65 mm
