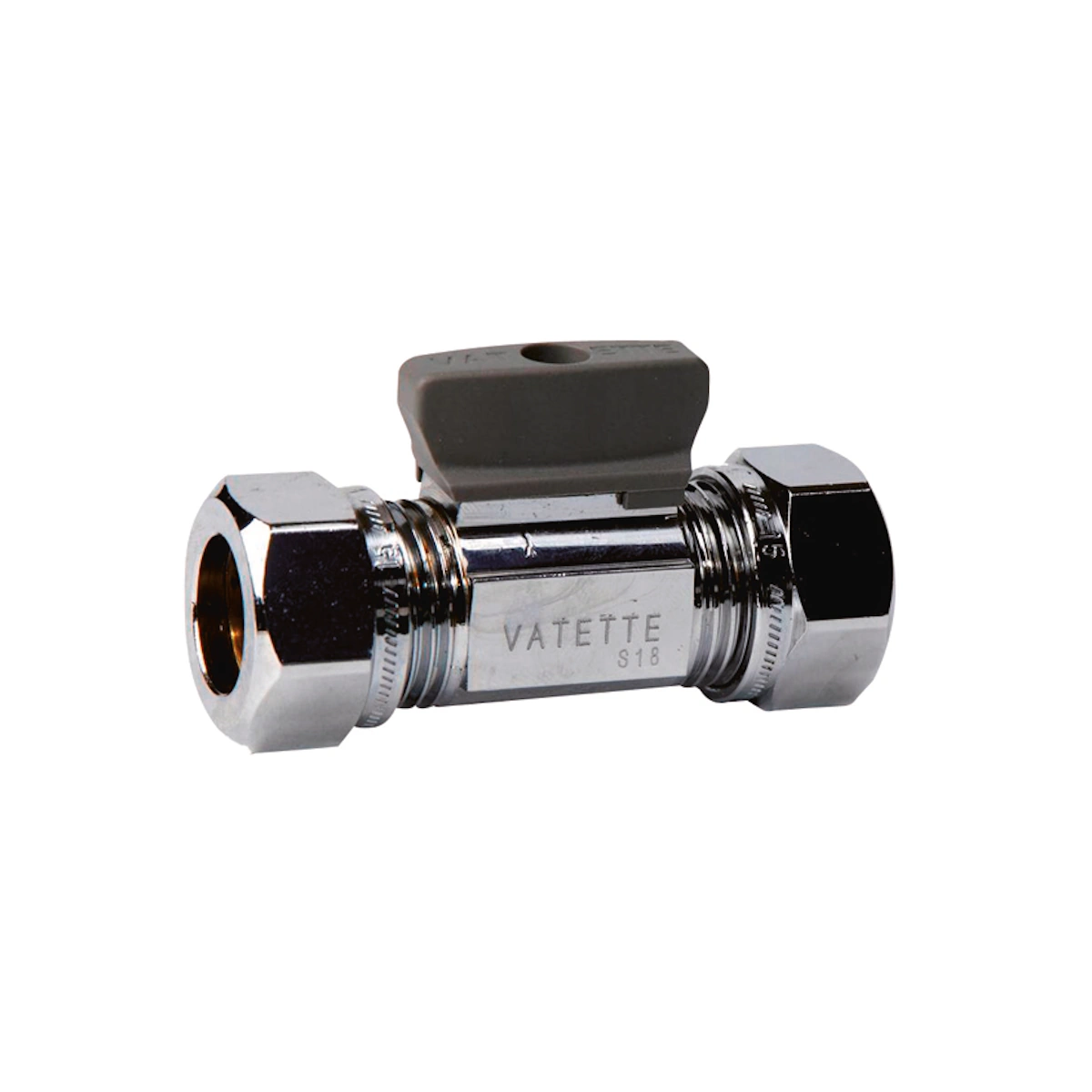

Vatette Ball Valve Straight 12x10mm With Knob

Description

This straight ball valve from Vatette is a reliable solution for safe pipe installations. The valve is made of dezincification-resistant brass with an elegant chrome-plated surface, which provides both durability and a stylish finish. Thanks to the construction with a one-piece valve body, the risk of stress corrosion is minimized, which ensures a long service life in the home.

Smooth installation and high quality

The valve is equipped with practical compression ring connections for dimensions 12 mm and 10 mm. It is ideal for copper pipes, stainless steel pipes, electrogalvanized pipes and PEX pipes. The included knob has a secure screw-in fitting and a built-in rotation stop for easy handling.

Advantages of the Vatette ball valve

• System Vatette: Compatible with other products in the well-known Vatette system for a uniform installation.
• Safe design: The valve body without loose nipples provides extra security against leakage and corrosion.
• Soft closing: High-quality EPDM seals reduce the risk of the ball sticking over time.
• Durable design: Withstands temperatures from -20°C up to 100°C with a maximum pressure of PN10.

Technical Specifications

• Connection 1: 12 mm (Compression fitting)
• Connection 2: 10 mm (Compression fitting)
• Type: Straight model with Vatette end
• External dimensions: 60 x 22 x 34 mm
• Valve body: Dezincification resistant brass (DZR/CR)
• Surface treatment: Chrome plated
• Ball: Brass
• Seals (Ball and Spindle): EPDM rubber (ethylene propylene rubber)
• Handle: Plastic with screw-in fastening and rotation stop
• Pressure class: PN10 (Max. 10 bar differential pressure at 20°C)
• Temperature range: -20°C to +100°C (continuous medium temperature)
• Compatible Pipes: Copper, stainless steel, electrogalvanized steel and PEX pipe
• REACH: Yes (Meets the requirements for chemical handling)
• Construction: One-piece body (monoblock) to eliminate the risk of stress corrosion at joints.
