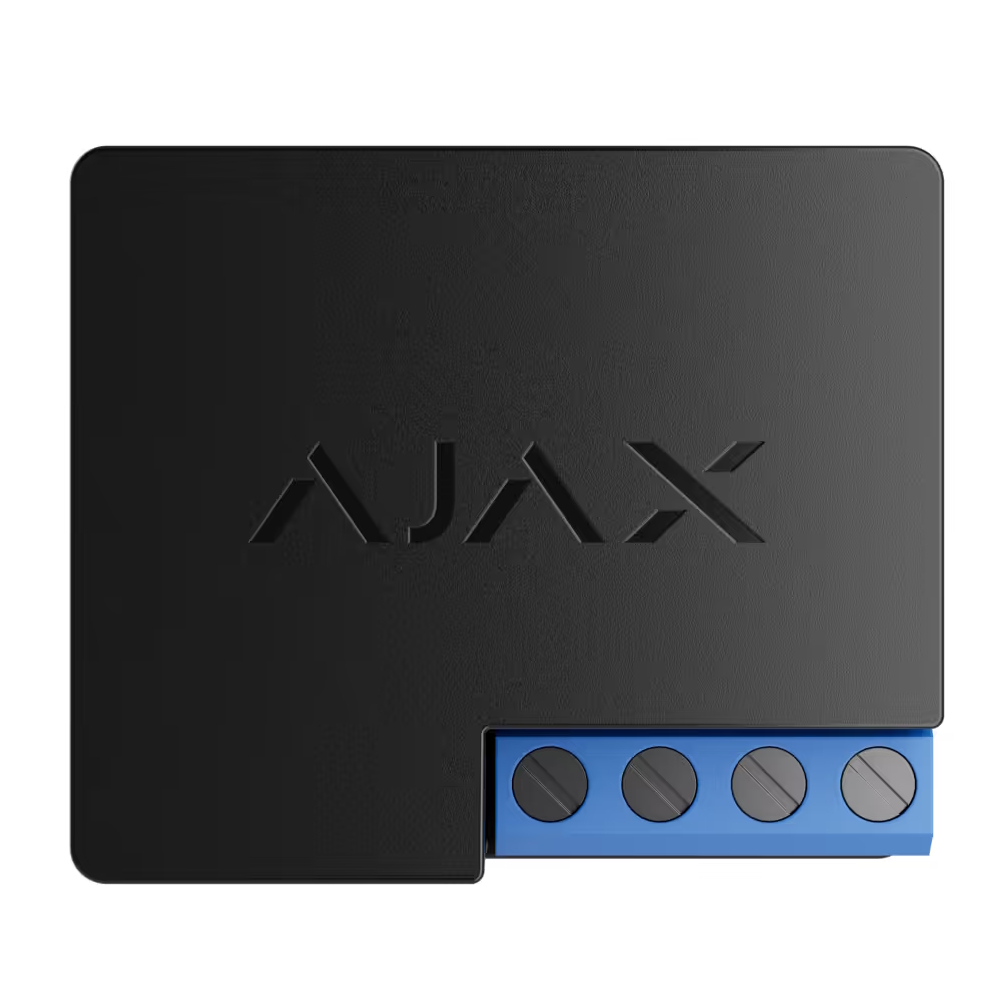

Ajax Wireless Relay Switch

Description

Compact and wireless relay module that allows you to remotely control electrical devices via your Ajax hub and the Ajax app. It is used to control low-voltage equipment (e.g. electric locks, valves, pumps, lighting or other auxiliary systems) by closing or opening a dry contact (NC/NO). The relay has adjustable modes (bistable or pulse mode) and can be triggered manually from the app, automatically via scenarios (such as in case of alarm, disarm or time schedule) and is suitable for mounting in a junction box, electrical panel or appliance box.

Specifications

• Type: Wireless relay contact / low voltage relay with potential-free contacts
• Colour: Plain black/neutral unit (without decorative panel)
• Installation: Indoor (junction box, electrical panel, appliance box)
• IP rating: IP20
• Compatibility: Ajax hubs (Hub, Hub Plus, Hub 2, Hub 2 Plus) and ReX signal amplifier
• Power supply: 7–24 V DC
• Dry contact: potential-free (NC/NO selectable)
• Maximum current consumption: 5 A at 36 V DC or 13 A at 230 V AC
• Maximum contact voltage limit: up to 36.5 V DC
• Maximum spinning power (230 V): approx. 3 kW
• Contact mode: Normally open or normally closed (selectable)
• Operating modes: Bistable (on/off) or pulse mode (0.5–255 s)
• Communication: Encrypted Jeweller radio (868.0–868.6 MHz)
• Range: Up to approx. 1,000 m in open area between hub and relay
• Overvoltage/overheating protection – the device automatically closes the relay in case of excessive temperature or voltage spikes
• Jamming detection and tamper alarm included
• Temperature: 0 °C to +64 °C
• Humidity: Up to approx. 75% (non-condensing)
• Dimensions: approx. 38 × 25 × 18 mm
