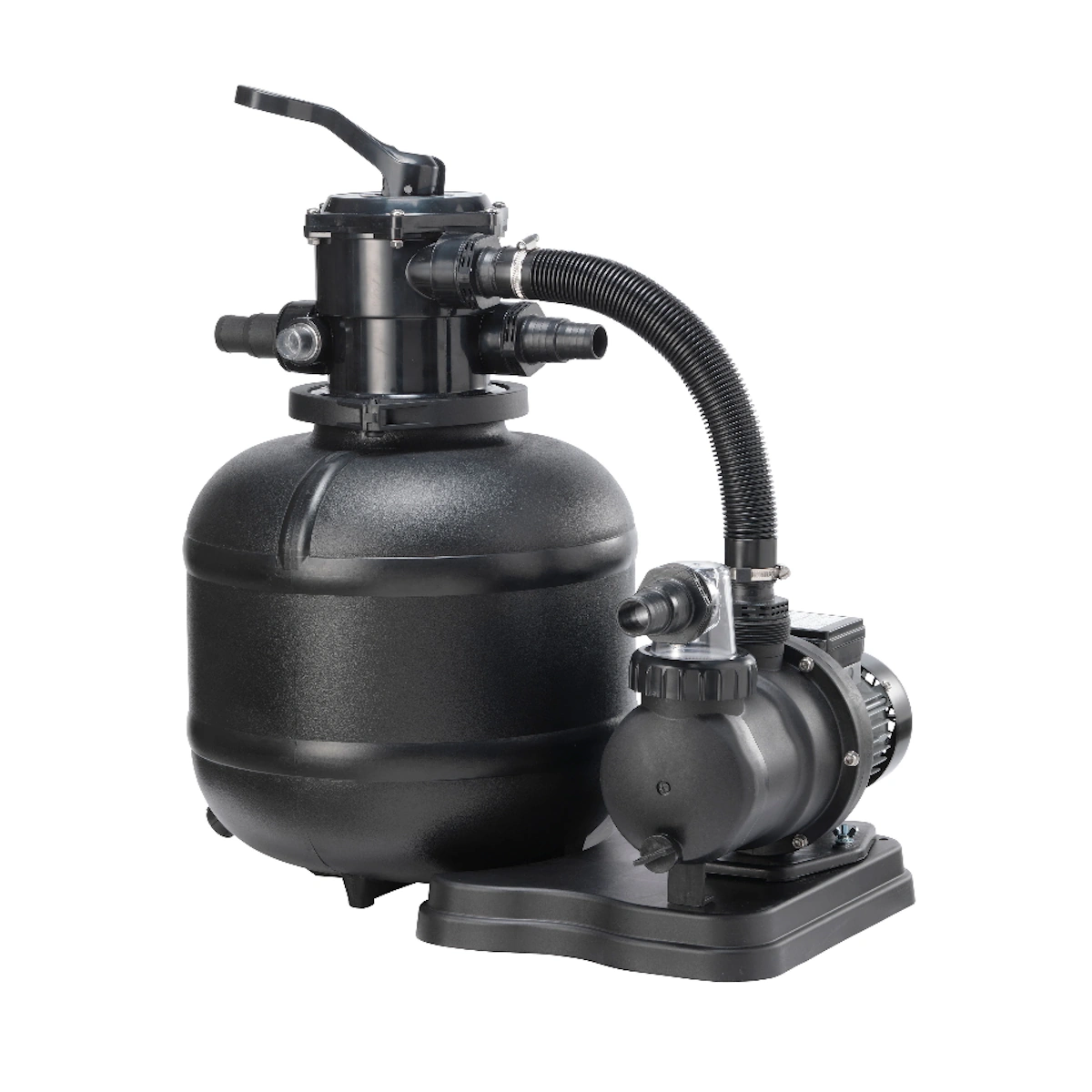

Swim & Fun Filter System Classic 400W

Description

With your own pool in the garden, you are always ready for a refreshing dip and nice summer days. To maintain a fresh and inviting swimming environment, reliable circulation and effective purification are important. The Swim and Fun Filter System Classic 400 is a complete and compact filter system, especially designed for garden pools and swimming pools with a water volume of up to 33,000 liters. By continuously purifying the pool water, good conditions are created for healthy bathing water while the need for chemicals and water care products is reduced.

The included pump is self-priming and has a performance that is optimally adapted to the size of the filter tank. The entire system comes with a stable mounting platform that brings together both the pump and filter tank in one place for easy installation. Thanks to the flexible design, the system can be easily connected to standard pool hoses with a diameter of either 32 mm or 38 mm.

Easy handling with built-in pre-filter and pressure gauge

This filter system has been designed with great focus on user-friendliness and safe operation. The filter tank is made of a robust and weather-resistant material to withstand changing outdoor environments. On top of the tank is a multi-way valve with clear markings, making it easy to switch between different functions such as normal filtration and cleaning.

During use, the pressure in the tank can be easily read on the integrated pressure gauge, which provides a clear indication when it is time for backwashing or maintenance. The pump is also equipped with a practical pre-filter. This pre-filter captures larger debris particles before the water reaches the filter media, which protects the system and makes cleaning considerably easier.

Choose the filter material that suits you best

Swim and Fun Filter system Classic 400 gives you the freedom to choose between two different types of filter material based on your preferences:

• Filterballs: A modern and highly efficient filter material that captures particles down to 10 microns. Filterballs provide minimal water resistance, which contributes to a higher flow and lower energy consumption. The material has a very low weight, where 980 grams of Filterballs replaces a full 35 kg of traditional filter sand. No backwashing is required during the season, but the material can be easily washed by hand or in a washing machine without soap after the end of the summer.
• Filter sand: The traditional and well-proven natural material sand filters out particles down to 40 microns. When choosing sand, it is recommended that the system is placed in its final location before the tank is filled, as the sand becomes heavy when wet. With sand, the system is backwashed approximately 2 to 4 times a month to keep the material clean, which results in slightly higher water consumption.

Bottom suction options and additional accessories

Thanks to the powerful pump, you can also use the filter system for mechanical cleaning of the pool bottom. By connecting a bottom suction on a telescopic pole via the skimmer, dirt and sediment can be sucked up directly through the system. If you want to further optimize the water quality, the system can be supplemented with accessories such as UV light to reduce microorganisms. The pump is also resistant to salt water, which makes the filter system flexible for different types of pool maintenance.

Technical specifications

• Maximum pool volume: 33,000 liters
• Pump capacity: 8,500 liters/hour
• Purification capacity with sand: 6,600 liters/hour
• Purification capacity with Filterballs: 6,970 liters/hour
• Maximum flow (Qmax): 142 liters/minute
• Maximum lift height (Hmax): 9 meters
• Power: 450 W
• Voltage: 230V / 50Hz
• Operating pressure: 1.5 bar
• Hose connection: 32 mm and 38 mm
• Filter tank diameter: 400 mm
• Filter sand capacity: 35 kg
• Filterballs capacity: 980 grams
• Noise level: 70 dB(A)
• Cable length including plug: 1.5 meters
• Ambient temperature: -4 degrees to +35 degrees
• Dimensions (HxWxL): 66.5 x 41.5 x 60 cm
• Features: Self-priming pump, integrated pressure gauge, built-in pre-filter, mounting platform
