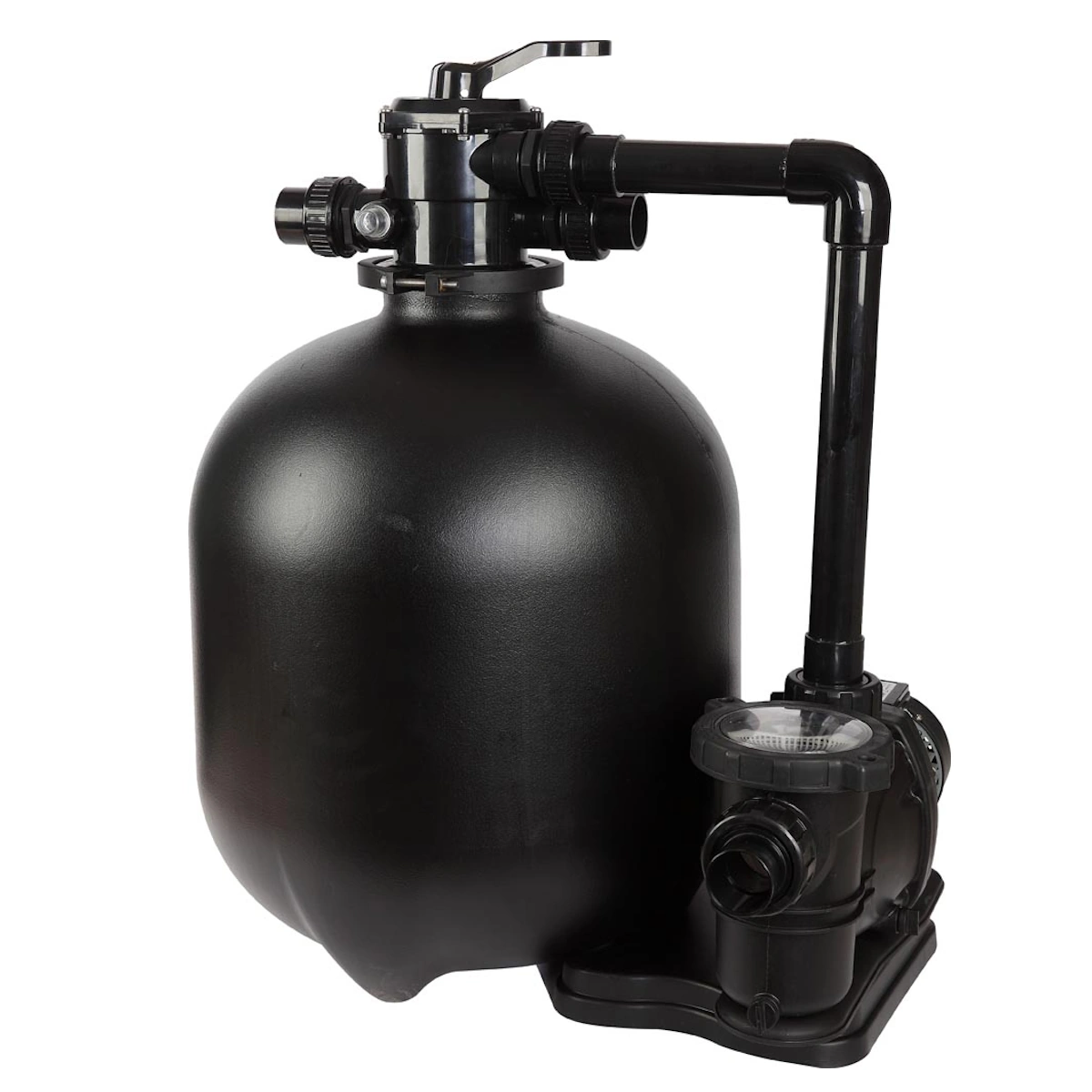

Swim & Fun Filter System Pro Classic 800W

Description

A crystal clear and fresh swimming water creates the best conditions for a successful pool season. The Swim and Fun Filter System Pro Classic 800W is a complete and high-performance filter system, developed for efficient circulation and thorough purification in larger free-standing pools and garden pools with a water volume of up to 70,000 liters. This robust system connects a spacious, weather-resistant filter tank with a powerful self-priming pump, which ensures continuous water movement and inviting pool water.

High filtration capacity and flexible filter media

This flexible filter system gives you the option to choose between classic filter sand and modern Filterballs. When using filter sand, the generous 600 mm tank holds up to 140 kg of sand, which provides stable mechanical filtration with a purification capacity of 14,570 liters per hour. If Filterballs are chosen instead, approximately 3,800 grams are needed, which contributes to lower energy consumption, increased water flow and a purification capacity of up to 16,400 liters per hour, while eliminating the need for regular backwashing.

Easy maintenance and versatile functions

The pump is equipped with an integrated pre-filter that collects coarse dirt particles to protect the filter media, which makes maintenance easier and extends the life of the equipment. A clear pressure gauge shows the current pressure in the top-mounted multi-valve for clear handling. Thanks to the strong pump capacity, it is ideal to connect a manual bottom vacuum via a telescopic pole to keep the bottom of the pool completely clean. The system is also prepared for easy installation of UV light if you want to reduce the need for chemicals even further.

Technical specifications

• Maximum pool volume: 70,000 liters
• Pump power: 800 W (230 V / 50 Hz)
• Maximum pump capacity (Qmax): 19,000 liters/hour (284 l/min)
• Maximum lift height (Hmax): 13 meters
• Purification capacity with Filterballs: 16,400 liters/hour
• Purification capacity with filter sand: 14,570 liters/hour
• Filter tank diameter: 600 mm
• Filter sand capacity: 140 kg
• Filter ball capacity: 3,800 grams
• Hose connection: 50 mm (also fits 32 mm, 38 mm and 50 mm)
• Max. operating pressure: 1.5 bar
• Noise level: 70 dB(A)
• Cable length: 1.5 meters with plug
• Dimensions (HxWxL): 90.5 x 61 x 80.5 cm
• Pump type: Self-priming, saltwater resistant
• Temperature range: -4 °C to +35 °C
