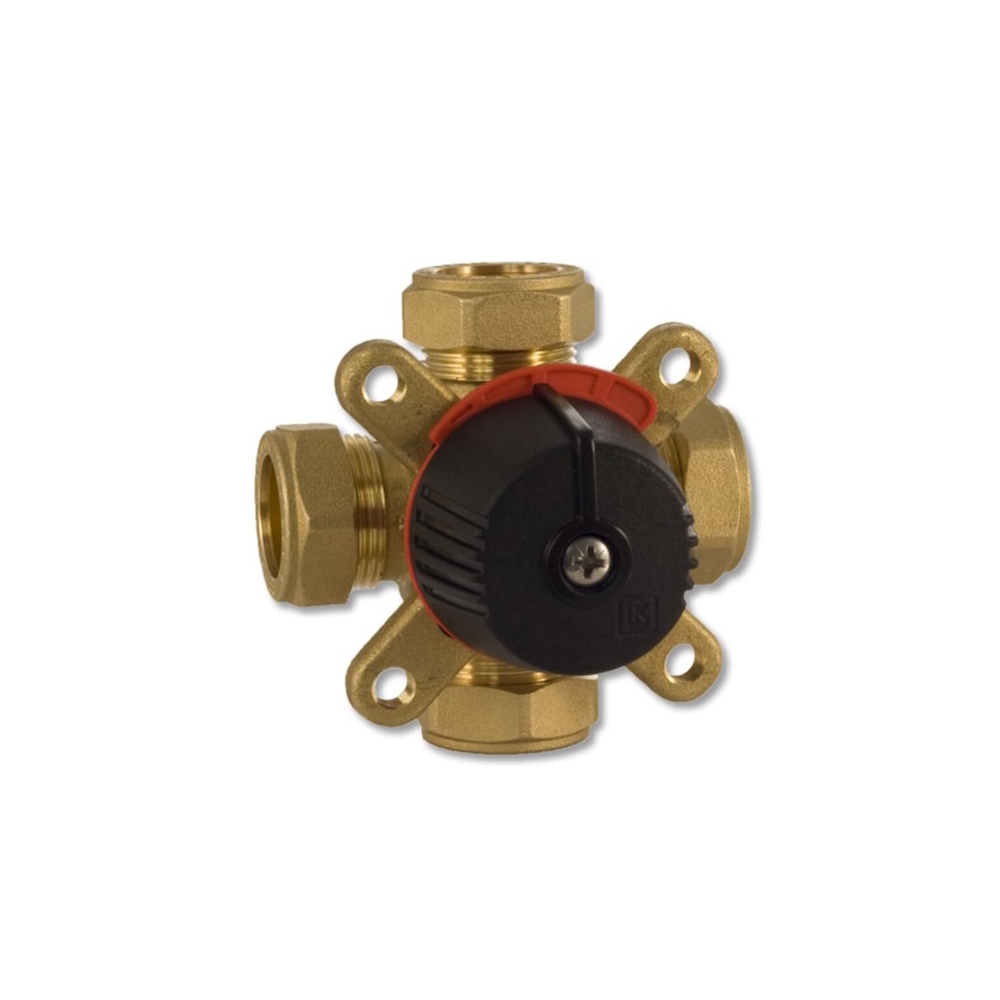

LK 830 ThermoMix B Shunt Valve 15mm Clamp Connection 4m³/h

LK 830 ThermoMix B 4-way bivalent shunt valve is intended for heating systems with two energy sources.

LK 830 ThermoMix B Shunt Valve 15mm Clamp Connection 4m³/h

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK 830 ThermoMix B Shunt Valve 15mm Clamp Connection 4m³/h

LK 830 ThermoMix B 4-way bivalent shunt valve is intended for heating systems with two energy sources.

Description

LK 830 ThermoMix B 4-way bivalent shunt valve is intended for heating systems with two energy sources that are connected in series or parallel or for accumulator systems where energy is taken from two levels. LK 830 ThermoMix B is designed to be used together with automatic shunt control, which ensures that the most advantageous energy source is always prioritized.

Specifications

  • Dimension: 15mm
  • Size: 4m³/h
  • Pressure/Flow/Temp: 1.0 Mpa (10 Bar)
  • Function: bivalent
  • Design: 4-way, compression fitting
  • Color: brass
  • Material: brass
  • Material housing/enclosure/body: Brass
  • Material quality: Dezincification resistant brass (DZR)
  • Dimension (Nominal diameter): DN 15
  • Outer pipe diameter all connections: 15 mm
  • Connection 1: Compression fitting
  • Connection 2: Compression fitting
  • Connection 3: Compression fitting
  • Connection 4: Compression fitting
  • Pressure class: PN 10
  • Max. differential pressure at 20°C: 10 bar
  • Surface protection: Untreated
  • Operation: Handwheel
