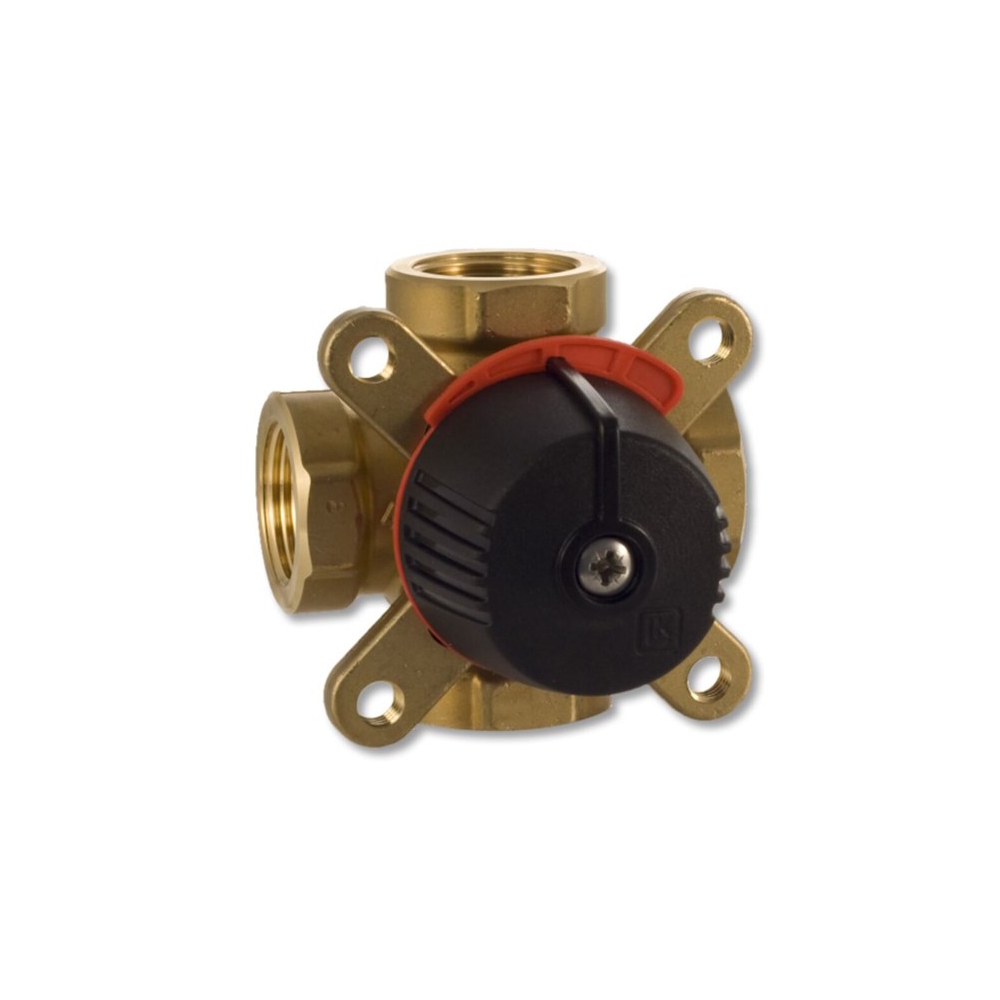

LK 830 ThermoMix B Shunt Valve G20 Internal Thread 6.3m³/h

LK 830 ThermoMix B 4-way bivalent shunt valve is intended for heating systems with two energy sources.

LK 830 ThermoMix B Shunt Valve G20 Internal Thread 6.3m³/h

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK 830 ThermoMix B Shunt Valve G20 Internal Thread 6.3m³/h

LK 830 ThermoMix B 4-way bivalent shunt valve is intended for heating systems with two energy sources.

Description

LK 830 ThermoMix B 4-way bivalent shunt valve is intended for heating systems with two energy sources that are connected in series or parallel or for accumulator systems where energy is taken from two levels. LK 830 ThermoMix B is designed to be used together with automatic shunt control, which ensures that the most advantageous energy source is always prioritized.

Specifications

  • Dimension: G20
  • Size: 6.3m³/h
  • Pressure/Flow/Temp: 1.0 Mpa (10 Bar)
  • Function: bivalent
  • Design: 4-way, internal thread
  • Color: brass
  • Material: brass
  • Material housing/enclosure/body: Brass
  • Material quality: Dezincification resistant brass (DZR)
  • Dimension (Nominal diameter): DN 20
  • Connection 1: Internal thread G, cylindrical (ISO 228-1)
  • Connection 2: Internal thread G, cylindrical (ISO 228-1)
  • Connection 3: Internal thread G, cylindrical (ISO 228-1)
  • Connection 4: Internal thread G, cylindrical (ISO 228-1)
  • Max. differential pressure at 20°C: 0.5 bar
  • Surface protection: Untreated
  • Operation: Handwheel
