LK Coupling External Thread 25mmxR20
Transition coupling for LK Heating Pipe PE-X dimensions 20, 25 and 32mm.
Watch this product and we will notify you once it is back in stock.

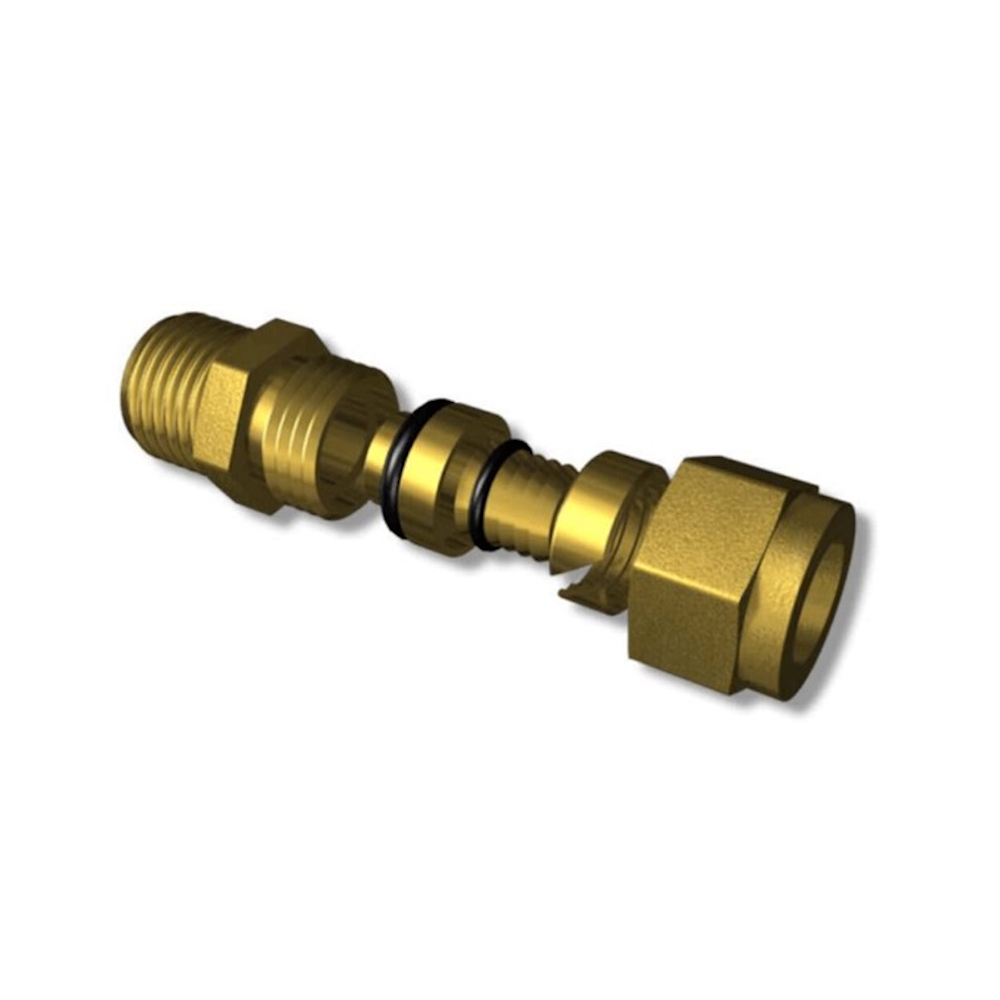

LK Coupling External Thread 25mmxR20
Description
Transition coupling for LK Heating Pipe PE-X dimensions 20, 25 and 32mm.
Specifications
- Dimension: 25mmxR20
- Version: External thread
- Material connection 1: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Surface protection connection 1: Nickel plated
- Surface treatment connection 1: Untreated
- Material connection 2: Brass
- Material quality connection 2: Dezincification resistant brass (DZR)
- Surface protection connection 2: Nickel plated
- Surface treatment connection 2: Untreated
- Shape: Straight
- Model/Version: 3-part
- Reduction: No
- Eccentric: No
- System-bound: Yes
- Outer pipe diameter connection 1: 25 mm
- Connection 1: Clamping ring
- Dimension connection 2: Conn. 20 (3/4")
- Connection 2: External thread R, conical (ISO 7-1 / EN 10226-1)
- Seal material: Brass
- With internal stop edge: Yes
- Media temperature (continuous): 0 - 70 °C
- Max. working pressure at 20°C (PN): 6 bar
- With gaskets: No
- With protective cap/plug: No
- With drain valve: No
- With air vent/bleeder: No
- FM-marked: No
- LPCB-marked: No
- ULC-marked: No
- UL-marked: No
