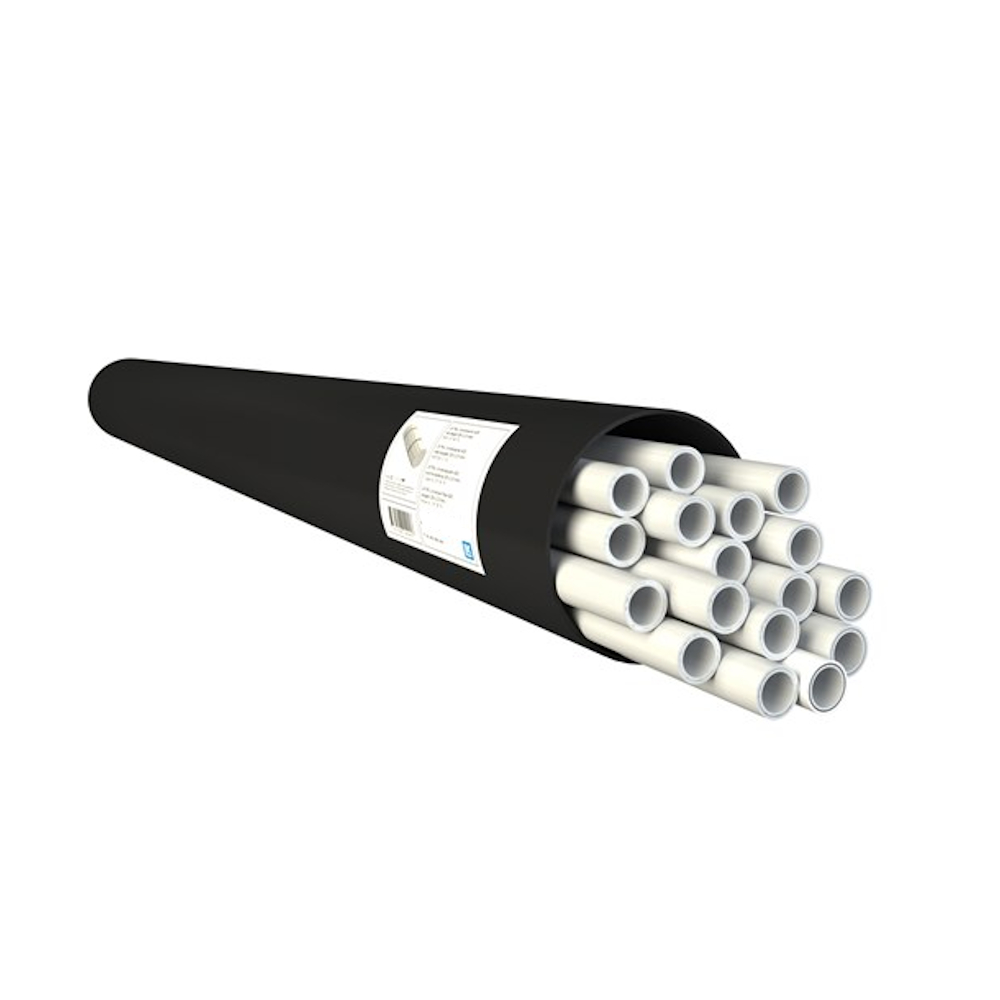

LK PAL Universal Pipe Straight Lengths A20x2.5mm 3.2m
PAL pipes in straight lengths, suitable and approved for cold water, hot water and heat pipe installations, such as underfloor heating.
Watch this product and we will notify you once it is back in stock.
LK PAL Universal Pipe Straight Lengths A20x2.5mm 3.2m
Description
PAL pipes in straight lengths and available in two different lengths. These universal pipes from LK Systems are suitable for installations in strips and are suitable and approved for cold water, hot water and heat pipe installations, such as underfloor heating.
Specifications
- Dimension: 20x2.5mm
- Size: L=3.2m straight
- Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
- Function: Tap water, heating, cooling
- Design: With diffusion barrier
- Color: White
- Material: PE-RT/aluminium
- Material quality inner layer: PE (polyethylene)
- Material middle layer: Aluminium
- Material quality outer layer: PE (polyethylene)
- Glass fiber reinforced: No
- Diffusion barrier: Yes
- Connection 1: Pipe end
- Connection 2: Pipe end
- Pressure class: PN 10
- Dimension (Nominal diameter): DN 20
- External pipe diameter: 20 mm
- Wall thickness/Material thickness: 2.5 mm
- System-bound: Yes
- Media temperature (continuous): -20 - 70 °C
- Max. media temperature (instantaneous): 95 °C
- Max. working pressure at 20°C (PN): 10 bar
- Max. working pressure at max. medium temperature: 10 bar
- Suitable for surface mounting: Yes
- With protective pipe: No
- With thermal insulation: No
- With protective cap/plug: No
Related products
-
LK Protective Cap 20mm
Protective cap for protecting pipe ends during construction.
1872232
8 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 6 till 10 vardagar
-
LK Bending Spring Internal AX16
For cold bending of LK PAL Universal Pipe type A and hot bending of LK PE-X Universal Pipe type X. The spring is intended for use inside the pipe.
1876898
160 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 2 till 5 vardagar
-

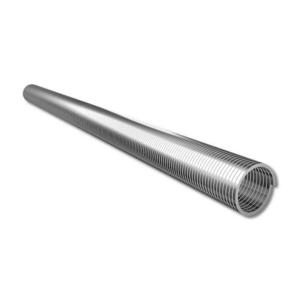

LK Bending Spring UTV AX20
