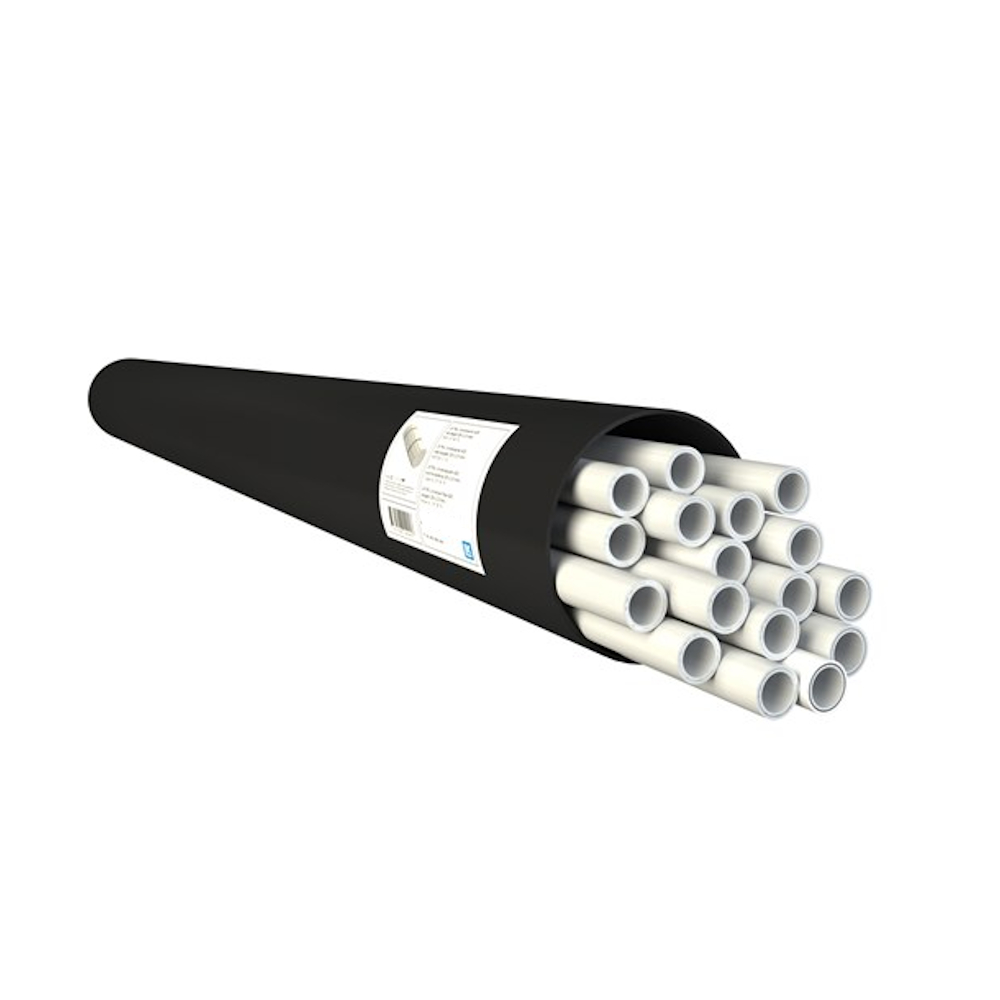

LK PAL Universal Pipe Straight Lengths A20x2.5mm 5m

PAL pipes in straight lengths, suitable and approved for cold water, hot water and heat pipe installations, such as underfloor heating.

LK PAL Universal Pipe Straight Lengths A20x2.5mm 5m

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK PAL Universal Pipe Straight Lengths A20x2.5mm 5m

PAL pipes in straight lengths, suitable and approved for cold water, hot water and heat pipe installations, such as underfloor heating.

Description

PAL pipes in straight lengths and available in two different lengths. These universal pipes from LK Systems are suitable for installations in strips and are suitable and approved for cold water, hot water and heat pipe installations, such as underfloor heating.

Specifications

  • Dimension: 20x2.5mm
  • Size: L=5m straight
  • Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
  • Function: Tap water, heating, cooling
  • Design: With diffusion barrier
  • Color: White
  • Material: PE-RT/aluminium
  • Material quality inner layer: PE (polyethylene)
  • Material middle layer: Aluminium
  • Material quality outer layer: PE (polyethylene)
  • Glass fiber reinforced: No
  • Diffusion barrier: Yes
  • Connection 1: Pipe end
  • Connection 2: Pipe end
  • Pressure class: PN 10
  • Dimension (Nominal diameter): DN 20
  • External pipe diameter: 20 mm
  • Wall thickness/Material thickness: 2.5 mm
  • System-bound: Yes
  • Media temperature (continuous): -20 - 70 °C
  • Max. media temperature (instantaneous): 95 °C
  • Max. working pressure at 20°C (PN): 10 bar
  • Max. working pressure at max. medium temperature: 10 bar
  • Suitable for surface mounting: Yes
  • With protective pipe: No
  • With thermal insulation: No
  • With protective cap/plug: No
