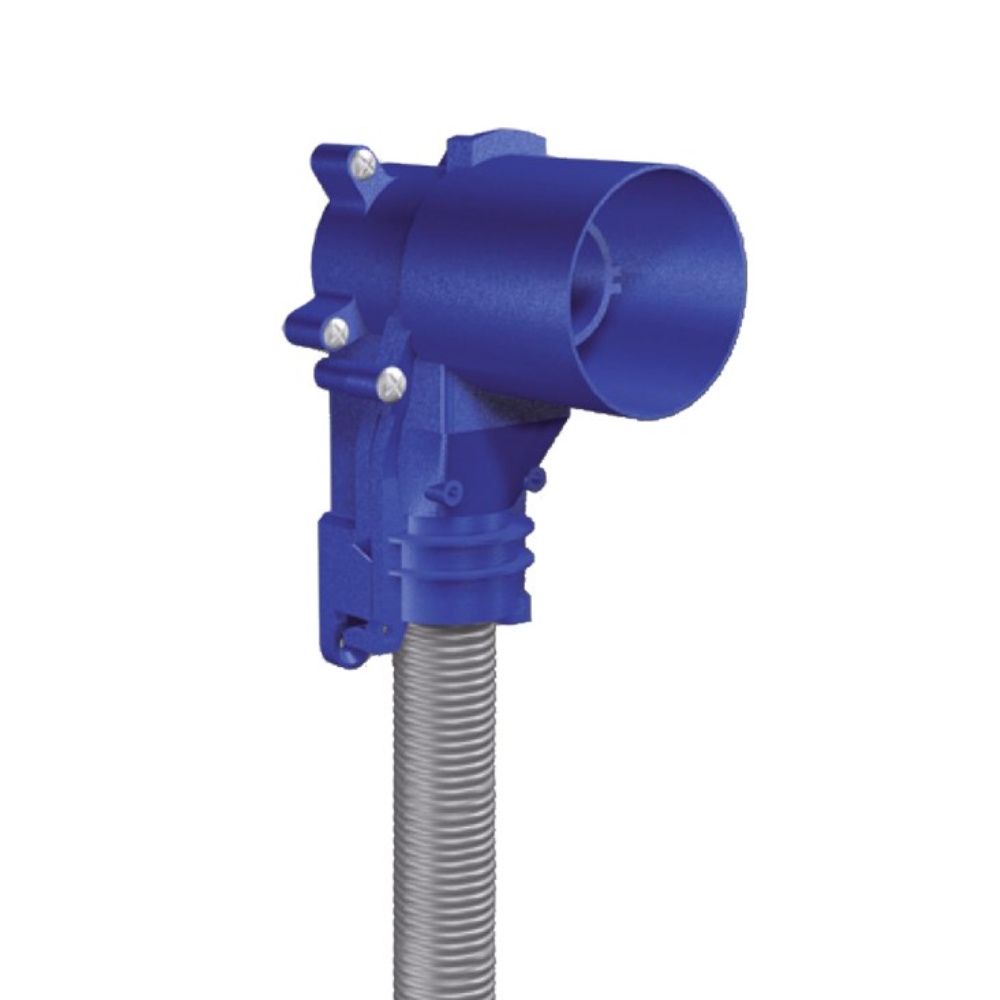

LK Wall Box UNI Single AX16/25mmxG15

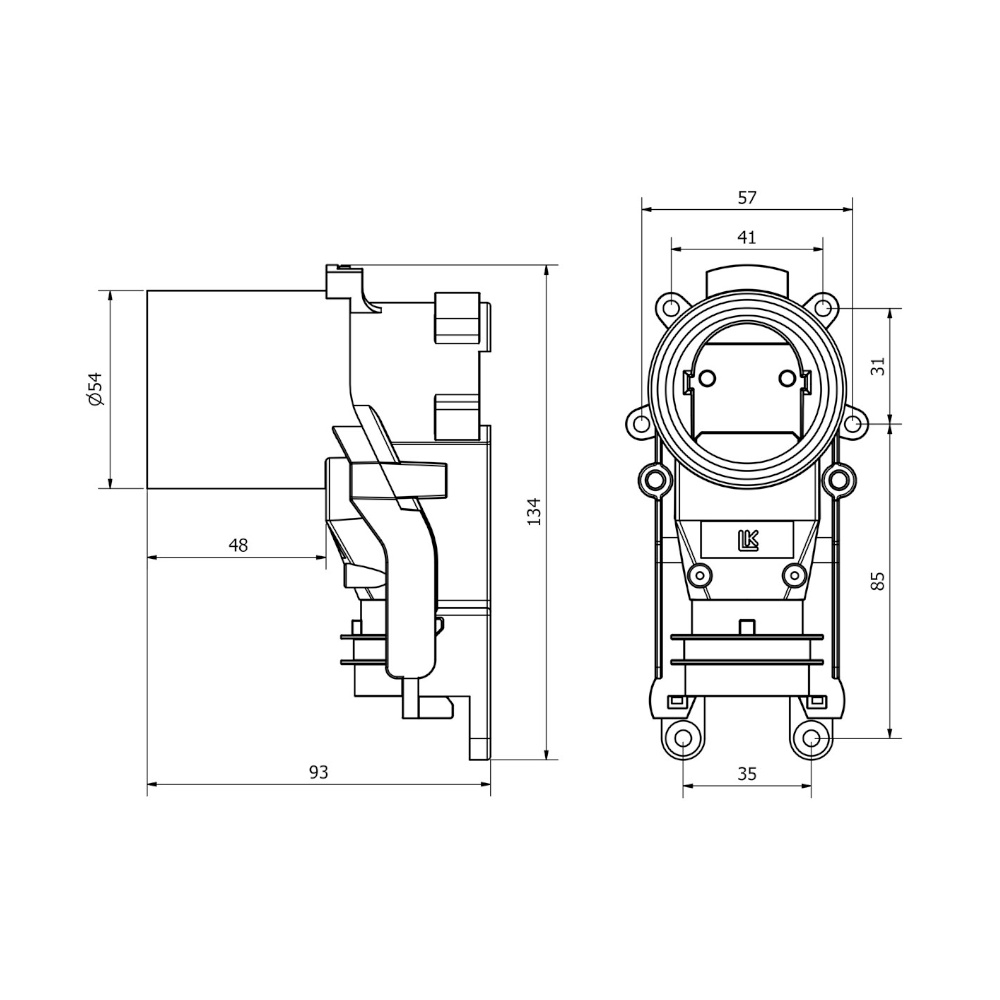

For pipe outlet from wall with min. 45 mm space in wall, wall box neck has a diameter of 54mm, minimum c/c distance between pipe outlets is 80mm.

LK Wall Box UNI Single AX16/25mmxG15

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK Wall Box UNI Single AX16/25mmxG15

For pipe outlet from wall with min. 45 mm space in wall, wall box neck has a diameter of 54mm, minimum c/c distance between pipe outlets is 80mm.

Description

For pipe outlet from wall with min. 45 mm space in wall. Wall box neck has a diameter of 54 mm. Minimum c/c distance between pipe outlets is 80 mm. Distance between boxes in wall with waterproofing for tap water or heating pipes must be at least 60 mm. Approved with 16 mm LK PE-X Universal pipe according to NT VVS 129. For the 16 mm box there are both options with compression ring coupling or PressPex coupling. For the 20 mm box there is only compression ring coupling. Please note that connections with 20 mm PE-X and 16 mm and 20 mm PAL Universal pipes do not meet the requirements of NT VVS 129 regarding inspection and interchangeability. For more information, see the installation instructions.

Specifications

  • Dimension: 16/25mm x G15
  • Function: For pipe outlet from the wall
  • Design: Simple, clamping ring
  • Color: Violet
  • Material: Plastic
  • Suitable for embedding in concrete: No
  • Suitable for stud walls: Yes
  • Material housing/enclosure/frame: ABS (acrylonitrile butadiene styrene)
  • Outer diameter protective tube: 25 mm
  • With coupling: Yes
  • Material coupling: Brass
  • Material quality coupling: Dezincification-resistant brass (DZR)
  • Outer pipe diameter connection 1: 16 mm
  • Connection 1: Clamping ring
  • Dimension connection 2: Conn. 15 (1/2")
  • Connection 2: Internal thread G, cylindrical (ISO 228-1)
  • System-bound: Yes
  • With mounting plate: No
