LK Connection Coupling With Angled Distance External Thread G15xCU10/G15

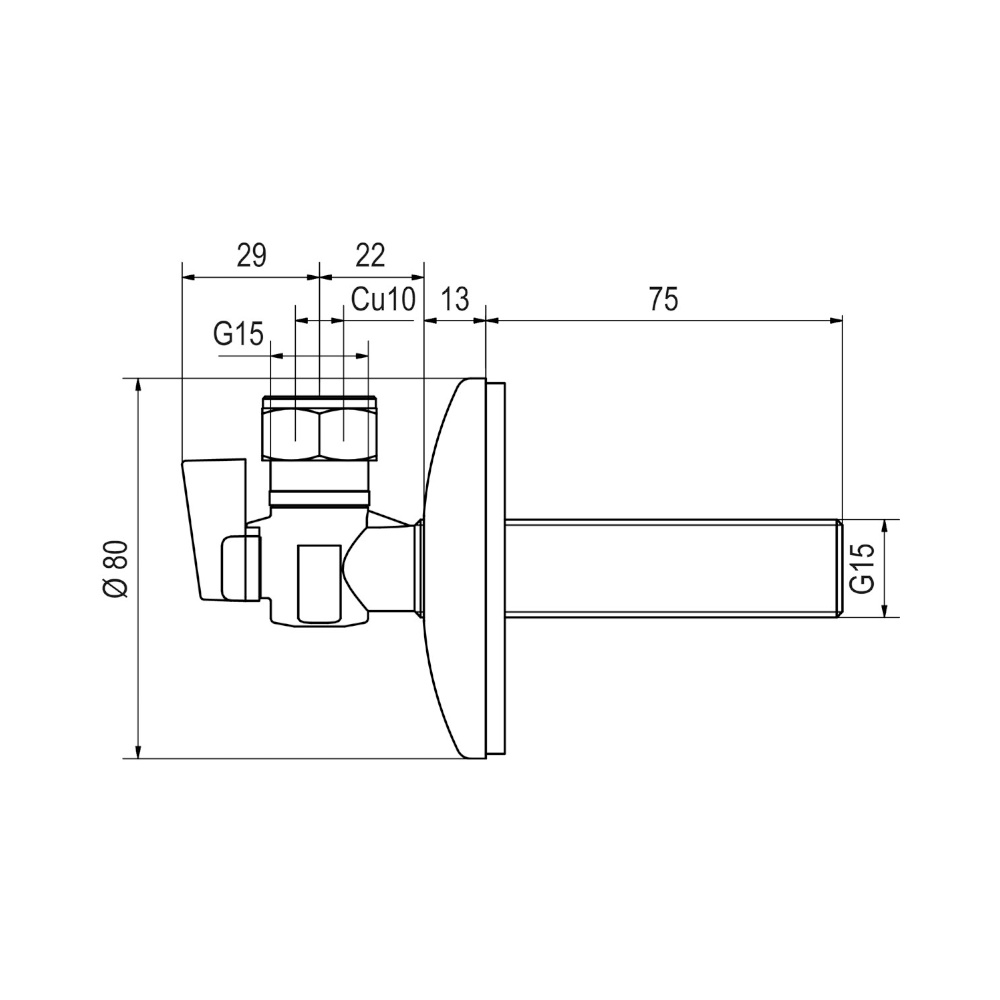

For all LK Wall Boxes, supplied with chrome-plated wall washer diameter 80 mm, external G15 for connection to the wall box's angled nipple, 75mm long.
Watch this product and we will notify you once it is back in stock.
LK Connection Coupling With Angled Distance External Thread G15xCU10/G15
Description
For all LK Wall Boxes. Supplied with chrome-plated wall washer diameter 80 mm. External G15 for connection to the wall box's angled nipple, 75mm long. At the angle, a compression ring coupling with shut-off for connection of 10 mm copper pipe. If the nut for the compression ring coupling is removed, there is an external G15 thread for connection of e.g. half coupling or connection hose with floating nut and flat gasket.
Specifications
- Dimension: G15xCU10/G15
- Function: For LK wall boxes
- Design: External thread x clamping ring
- Color: Chrome
- Surface treatment: Chrome-plated
- Material: AZH brass
- Other info: Angle with shut-off
- Model/Design: Angled
- Material: Brass
- Surface protection: Chrome-plated
- Color: Chrome
- Connection dimension inlet: 1/2"
- Connection inlet: External thread
- Thread connection fitting: External thread
- With shut-off valve: Yes
- With washer/rosette: Yes
- Diameter cover washer/rosette: 80 mm
- With locknut: No
- Delivered in pairs: No
