Plumbing Pipes & fittings Pexrör & Kopplingar LK Universal LK Installationsmateriel

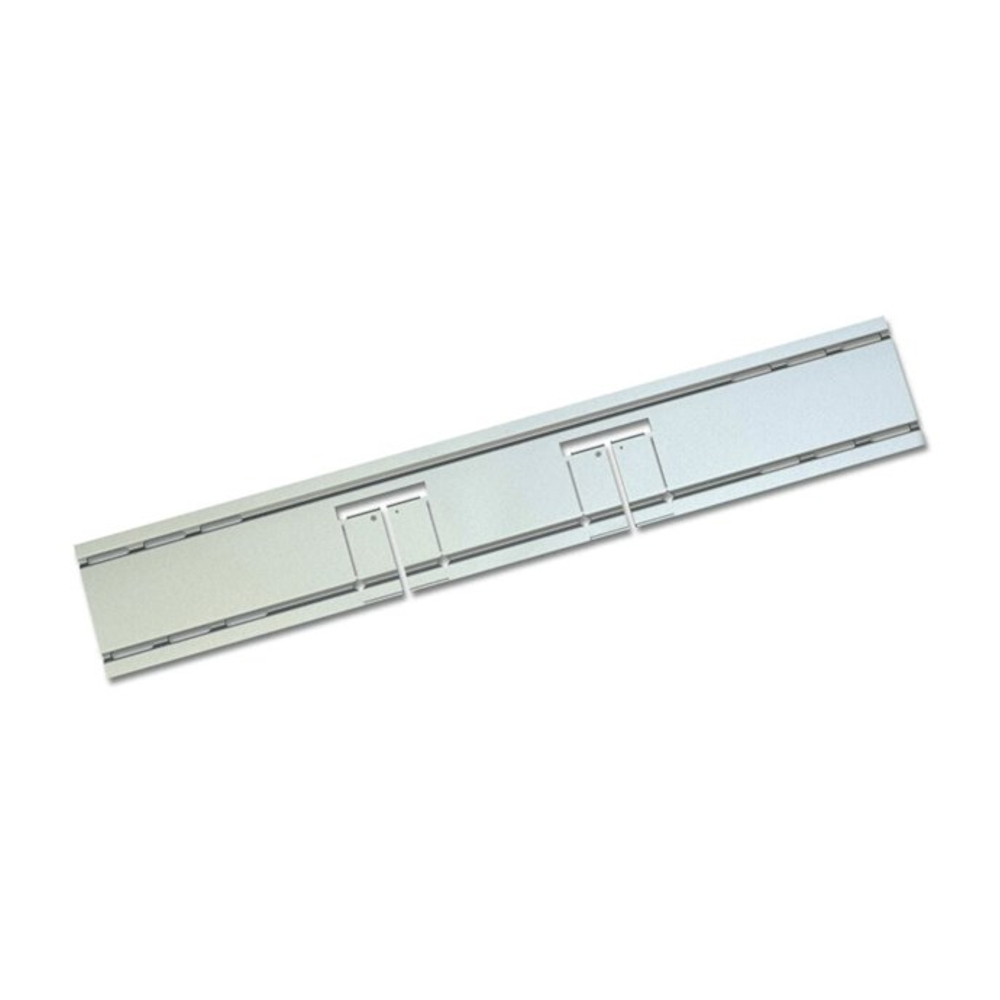

LK Wall Rail Wall Box UNI Push V3 c/c160mm

For fixing LK Wall Box UNI Push V3 c/c160mm in wooden joists made of 1.25 mm surface-treated steel sheet.

LK Wall Rail Wall Box UNI Push V3 c/c160mm

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK Wall Rail Wall Box UNI Push V3 c/c160mm

For fixing LK Wall Box UNI Push V3 c/c160mm in wooden joists made of 1.25 mm surface-treated steel sheet.

Description

For fixing LK Wall Box UNI Push V3 in wooden joists with a c/c distance of 300 mm or 450 mm. The wooden joist must be jacked out 5 mm behind the entire sheet to allow space for the reinforcement profile. For pipe outlet c/c 160, choose sheet 188 26 60 and for pipe outlet c/c 150, choose sheet 188 26 61. The mounting lugs for the box are bent out when the sheet is to be mounted. Two screws for mounting the boxes in the sheet are included. Made of 1.25 mm surface-treated steel sheet.

NOTE! The wall rail should be supplemented with Wet Room Wall 2012 (Safe Water Wall).

Specifications

  • Dimension: 580x90x10
  • Size: c/c160mm
  • Function: Wall rail for Push V3 Wall Box
  • Color: Hot-dip galvanized sheet
  • Surface treatment: Hot-dip galvanized
  • Material: Hot-dip galvanized sheet
  • Model/Version: Double plane
  • Material mounting profile: Steel
  • Surface protection: Hot-dip galvanized
  • Center distance: 160 mm
  • Width: 580 mm
  • Material thickness: 1.25 mm
