LK Water Meter Cabinet UNI 8/6 CS Left Connection G25 White

Description

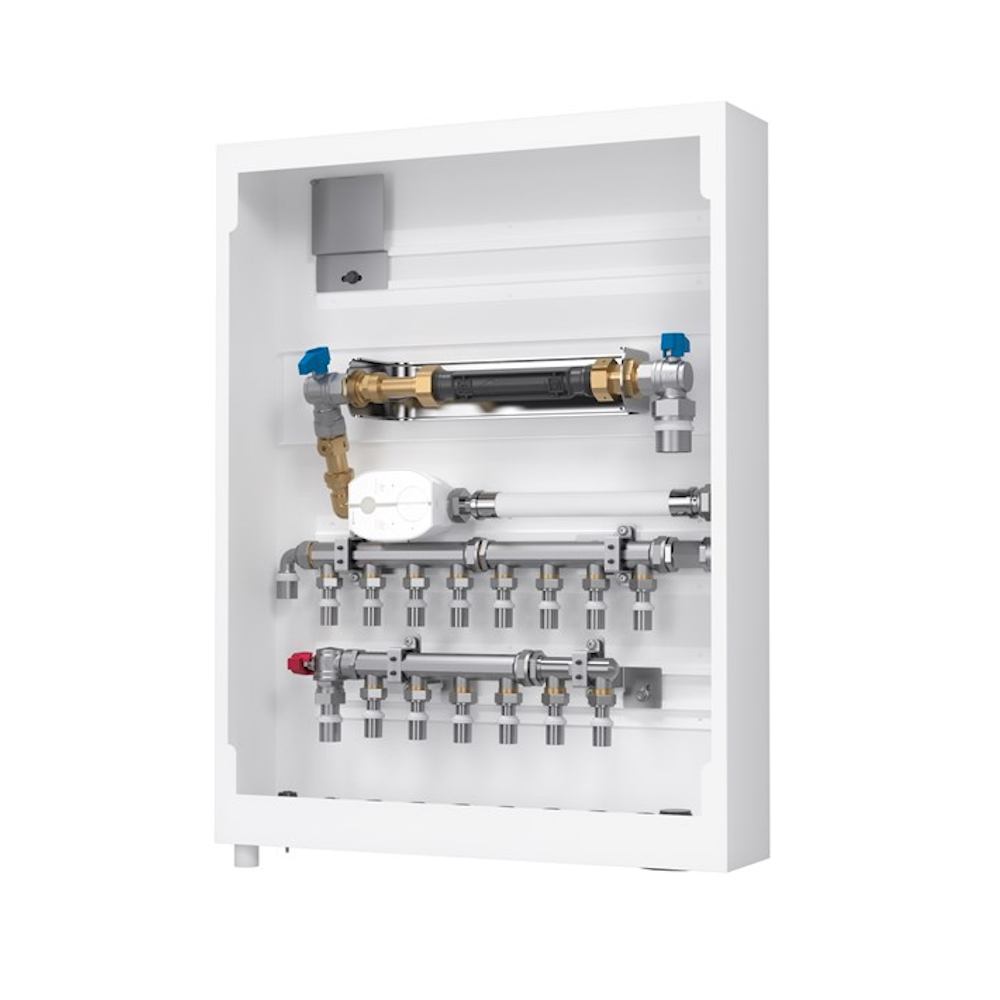

LK Water Meter Cabinet UNI 8/6 CS is a leak-proof prefabricated distributor cabinet for 8 cold water connections, 6 hot water connections, mounted LK CubicSecure and with a pre-mounted water meter console. Connection to water meter G25 internal 220/190 mm with included brass adapter. Supply with incoming cold water service is from below, connection external G25 on angle ball valve. The cabinet is available in two versions for connecting cold water service on the right and left sides. The cabinet cannot be rebuilt as it only has one hole for service line. The cabinet includes ball valves, fitting for the municipal tap water meter and a controllable check valve.

It is delivered complete with the required cabinet penetrations for both supply and connection lines (empty pipe dimensions: 1 pc diameter 50mm, 14 pcs diameter 25mm, 2 pcs diameter 32-34 mm). Also included are 14 pcs LK Press connection coupling AX16xG15 for connection lines, and sockets for AX20 for supply to and from the DHW. All distributors, couplings and ball valves are made of dezincification-resistant brass. The cabinet has a waterproof bottom with a 50 mm high front edge and is approved according to NT VVS 129. A protective bag to put over the cabinet during construction is included. The cabinet is mounted at a min. height of 300 mm from the underside of the cabinet bottom to the finished floor.

NOTE! LK Frame with door, RSK 243 46 80, fits LK Water Meter Cabinet UNI 8/6 CS and is ordered separately.

Specifications

• Dimension: G25 (DN20), 190–220 mm
• Size: 550×710×120 mm (W×D×H)
• Pressure/Flow/Temp: PN10
• Function: For 50 mm incoming protective pipe
• Version: With distributor 8 KV / 6 VV
• Color: White
• Material: Steel/brass/rubber
• Standard: Leak-proof
• Other info: Incoming service on the left
• Material housing/enclosure/frame: Steel
• Surface protection housing/enclosure/frame: Painted
• Color housing/enclosure/frame: White
• With frame for door: No
• Adapted for connection to waterproofing: No
• With waterproof bottom: Yes
• With pipe penetration seal: Yes
• With splash guard: Yes
• With brackets for distributor: Yes
• With outlet for leakage indication: Yes
• Suitable for built-in/recessed installation: Yes
• Suitable for surface mounting: No
• Open holes top: No
• Open holes side: No
• Open holes bottom: Yes
• With pre-assembled distributor: Yes
