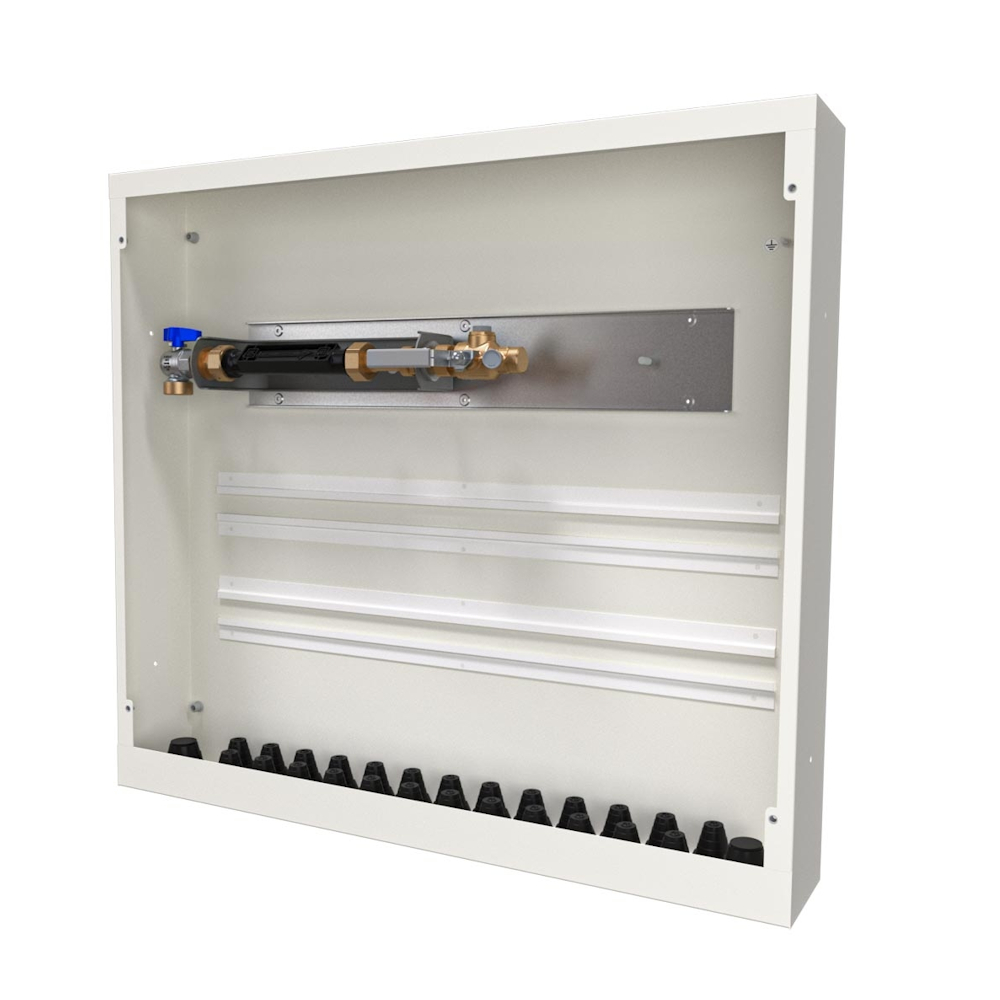

LK Water Meter Cabinet UNI XL G25 White

LK Water Meter Cabinet UNI XL a leak-proof prefabricated distributor cabinet with pre-mounted water meter console.

LK Water Meter Cabinet UNI XL G25 White

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK Water Meter Cabinet UNI XL G25 White

LK Water Meter Cabinet UNI XL a leak-proof prefabricated distributor cabinet with pre-mounted water meter console.

Description

LK Water Meter Cabinet UNI XL a leak-proof prefabricated distributor cabinet with pre-mounted water meter console. Connection to water meter G25 internal 220/190 mm with included brass adapter. Supply with incoming cold water service is from below, connection external G25 on angle ball valve. Supplied including ball valves, fitting for the municipality's tap water meter and controllable check valve. Supplied complete with 1 pipe penetration 50 LP and 1 pipe penetration 25-40 LP. All couplings and ball valves are made of dezincification-resistant brass. The cabinet has a waterproof bottom with a 50 mm high front edge and is approved according to NT VVS 129. A protective bag to put over the cabinet during construction is included. The cabinet is mounted at a minimum height of 350 mm from the bottom of the cabinet bottom to the finished floor.

NOTE! LK Frame with door is ordered separately, RSK 243 46 79, fits LK Water Meter Cabinet UNI XL. The cabinet can be supplemented with LK Console UNI 188 22 04, 188 22 05 and LK Distributor UNI.

Specifications

  • Dimension: G25 (DN20), 190-220mm
  • Size: 800x710x120mm (WxDxH)
  • Pressure/Flow/Temp: PN10
  • Function: For 50mm incoming protective pipe
  • Version: External thread (in bracket)
  • Color: White
  • Material: Steel
  • Standard: Leak-proof
  • Other info: Incoming service on the left
  • Material housing/enclosure/frame: Steel
  • Surface protection housing/enclosure/frame: Painted
  • Color housing/enclosure/frame: White
  • With frame for door: No
  • Adapted for connection to waterproofing: No
  • With waterproof bottom: Yes
  • With splash guard: Yes
  • With brackets for distributor: Yes
  • With outlet for leakage indication: Yes
  • Suitable for built-in/recessed installation: Yes
  • Suitable for surface-mounted installation: No
  • Open top hole: No
  • Open hole side: No
  • Open hole bottom: Yes
  • With pre-assembled distributor: No
