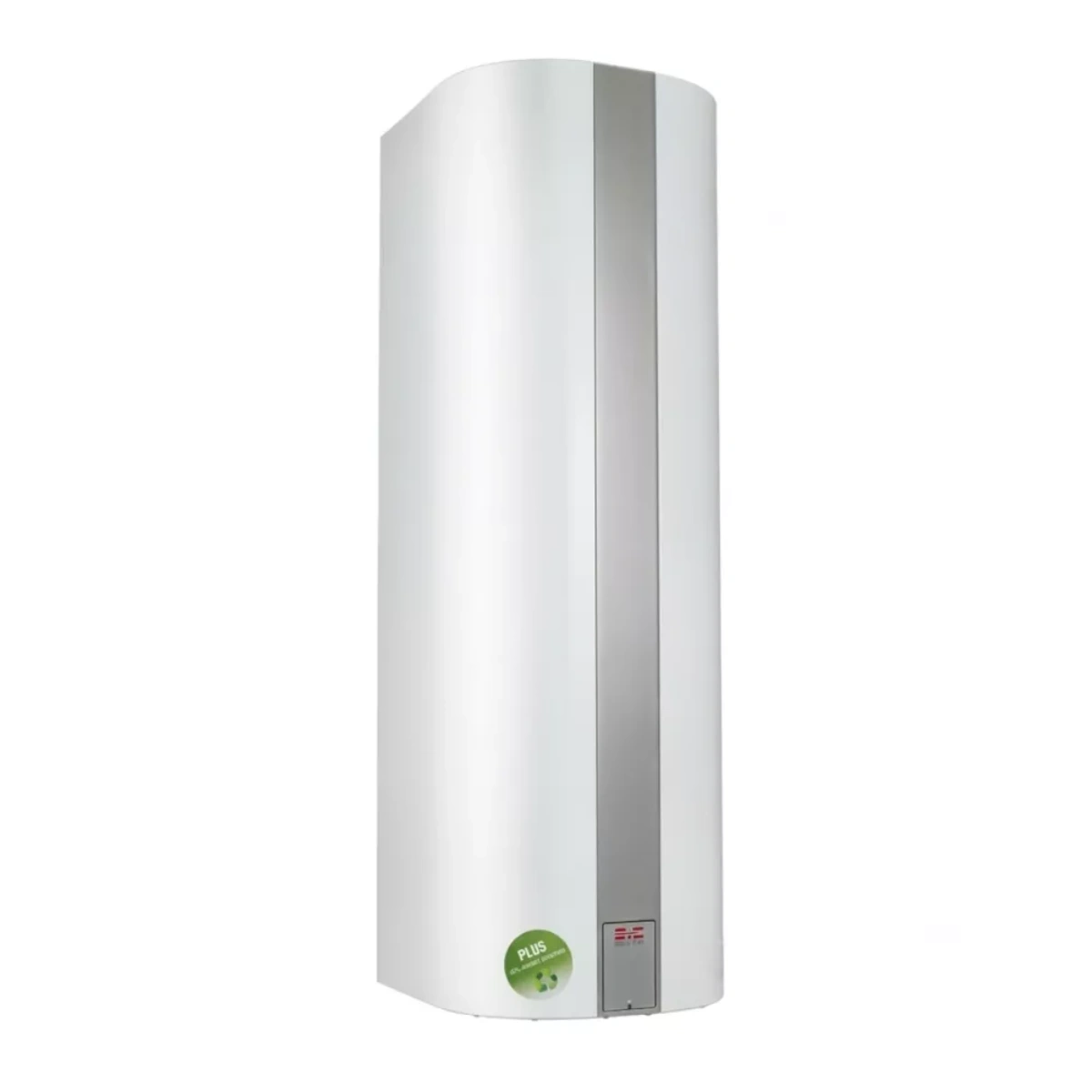

Metro Therm Water Heater Slinga Cabinet Plus 100 Enameled Steel

Description

Maximize your heating economy and save valuable space with the Metro Therm Slinga Cabinet Plus 100 E – the optimal solution for those who want a smart and seamless collaboration with your existing heating system. Metro Therm Plus 100 is a highly efficient and space-saving water heater, specially developed without its own electric immersion heater to be docked directly to an external heat source, such as a heat pump or a district heating center. Thanks to an extra large heat transfer surface – where the integrated charging loop is up to 1.7 times longer than in traditional standard models – the Plus 100 offers extremely efficient energy transfer and cooling. The market-leading performance means that this compact 100-litre model can easily replace a conventional 160-litre tank.

Minimal energy losses and Energy Class A

To ensure that no valuable heat energy is lost, the tank is enclosed in extra-strong, over 50 mm thick PUR insulation. This minimizes idle losses to an absolute minimum and gives the tank its highest energy rating: Energy Class A.

The obvious choice for lime-rich water and your own well

The tank is made of enamelled pressure vessel steel, which provides uncompromising and long-lasting protection against corrosion. This makes the Metro Therm Plus 100 extremely suitable for households with their own well or in geographical areas with high lime and chloride content in the drinking water (for example on Gotland, Öland, Österlen, as well as in Uppsala and Norrtälje).

Flexible and installation-friendly design

The Cabinet Plus 100 E coil is delivered complete with a robust wall bracket for quick and easy wall mounting. For those who prefer a floor-mounted solution, a stable floor stand is available as an accessory. All to offer the most flexible and customized installation possible in your home.

Key Features and Benefits

• Maximum energy transfer: Extra long charging coil (up to 1.7x longer than standard) provides optimal cooling and the highest possible heat transfer from your external source.
• Space-saving design: Smart 100-liter capacity that, thanks to its extreme efficiency, replaces a traditional 160-liter model.
• Minimal energy losses: Insulated with over 50 mm thick PUR insulation around the entire tank for the highest environmental and energy class: Energy class A.
• Enameled corrosion protection: Specially developed to withstand aggressive, lime-rich water and households with their own well (perfect for e.g. Gotland, Öland, Österlen and Uppsala).
• External docking: Designed for direct and smooth operation with a district heating center or heat pump.
• Flexible installation: Delivered ready for wall mounting; floor stand available as an accessory.

Specifications

• Type name / Model: Plus 100 / Loop Cabinet Plus 100 E
• Corrosion protection: Enameled pressure vessel steel
• Pipe connection: Down
• Fitting Diameter / C-C: Diameter 22 mm / C-C 100 mm
• Dimensions (HxWxD): 1400 x 460 x 460 mm
• Protection class: IP24
• Rated pressure: 10 bar
• Max. safety pressure: 13.5 bar
