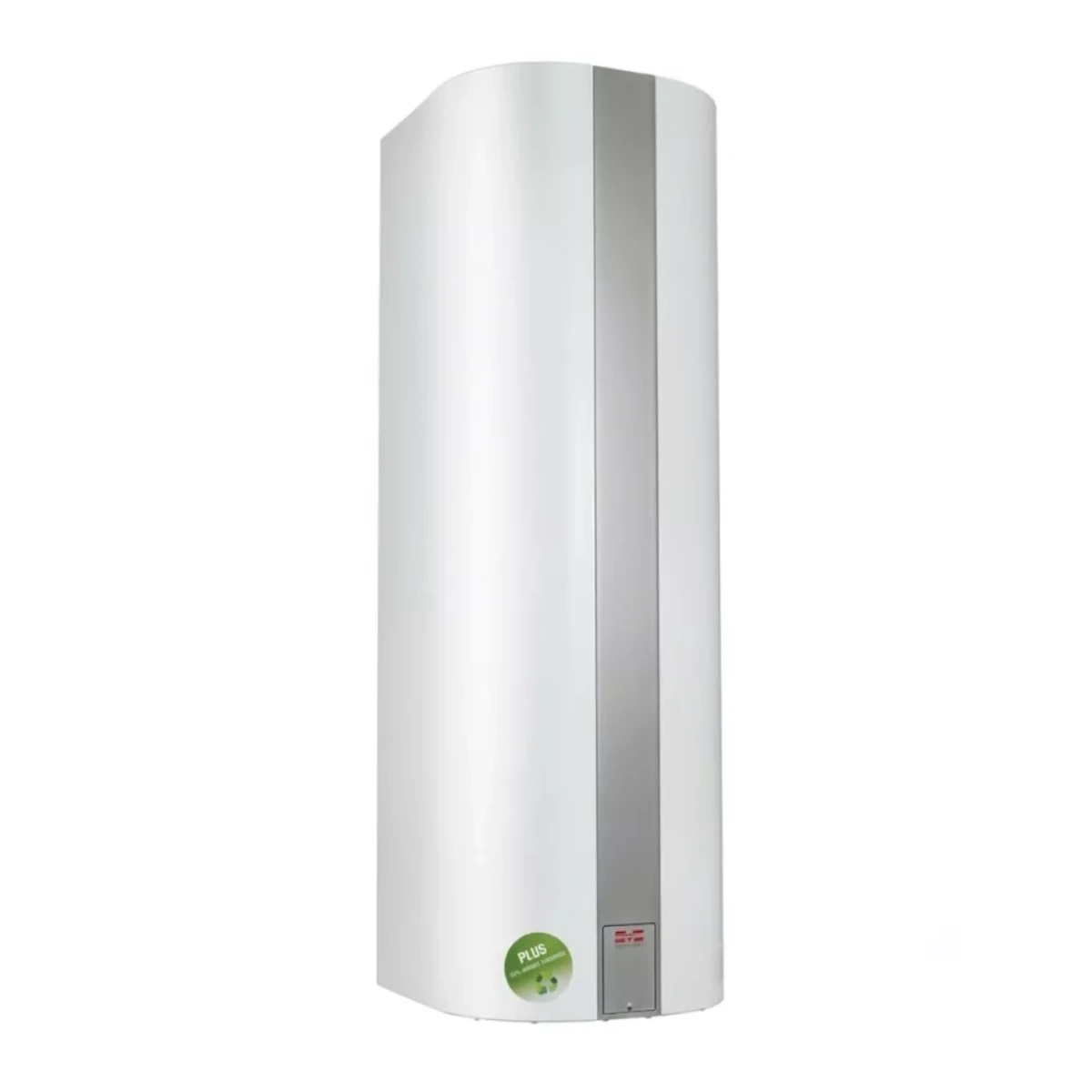

Metro Therm Water Heater Slinga Cabinet Plus 70 E

Description

Metro Therm Cabinet Plus 70 E is the optimal solution for those who want to maximize your energy transfer from an external heat source, such as a heat pump or district heating center. Thanks to the fact that this model lacks its own immersion heater and internal control, it functions as a clean and high-performance extension of your system. With its compact design of 70 liters, it performs on par with a conventional 100-liter heater - a perfect combination of space saving and high capacity.

Key benefits and features

• High-performance charging coil: Up to 1.7 times longer coil provides maximum heat transfer - replaces a standard 100L model.
• Energy class A: Over 50 mm thick PUR insulation minimizes heat loss and lowers your energy costs.
• Enameled corrosion protection: Optimally suited for lime-rich water and households with their own well.
• External docking: Excellent and effective complement to a heat pump or district heating center.
• Flexible installation: Supplied with wall bracket, can be supplemented with floor stand (accessory).

Maximum heat transfer and superb heat economy

Metro Therm Plus 70 is equipped with an extra large heat transfer surface. The charging coil in this model is up to 1.7 times longer than in standard models, which guarantees maximum efficient energy transfer and optimal cooling. To keep operating costs down, the heater is insulated with over 50 mm thick PUR insulation around the entire tank. This minimizes heat loss, saves energy and gives the product the highest possible energy rating: Energy class A.

The obvious choice for lime-rich water and your own well

This model has a pressure vessel made of enamelled pressure vessel steel, which provides extremely strong and reliable protection against corrosion. The enamel coating is specially designed to withstand water with a high lime and chloride content.

Perfect for regions with hard water: This makes the water heater ideal for households with their own well or for those who live in areas such as Gotland, Öland, Österlen, Uppsala and Norrtälje.

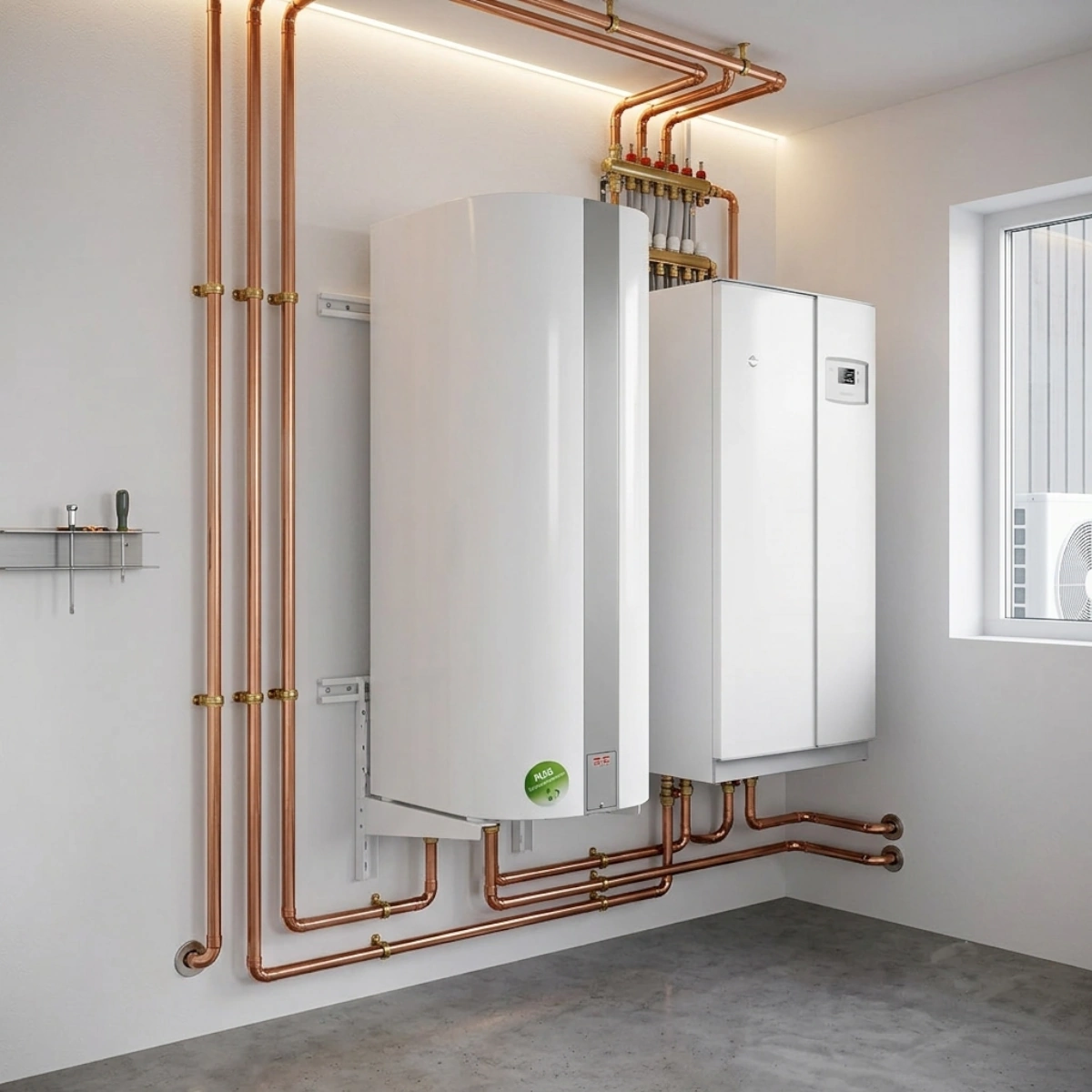

Flexible and easy installation in your home

Regardless of what your boiler room or laundry room looks like, the Metro Therm Plus 70 offers a flexible installation solution. The water heater is delivered complete with robust wall brackets for stable wall mounting. In this case, a practical floor stand can be purchased as an accessory.

Specifications

• Type name: Plus 70 (Cabinet)
• Corrosion protection: Enameled steel
• Dimensions (HxWxD): 1030x460x460mm
• Pipe connection: Down
• Fitting Diameter / C-C: Diameter 22 mm / 100 mm
• Protection class: IP24
• Rated pressure: 10 bar
• Max. safety pressure: 13.5 bar
