LK Universal Pipe PE-X Combi Pipe 16x2mm 160m
Cross-linked polyethylene pipe with oxygen diffusion barrier, for underfloor heating, tap water and radiator systems.
Watch this product and we will notify you once it is back in stock.
LK Universal Pipe PE-X Combi Pipe 16x2mm 160m
Description
Cross-linked polyethylene pipe with oxygen diffusion barrier, for underfloor heating, tap water and radiator systems. Max operating pressure 10 bar. Max continuous operating temperature 70ºC, short-term load 95ºC. Delivered rolled in cardboard packaging.
Specifications
- Dimension: 16x2mm
- Size (Length): 160m ring
- Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
- Function: Tap water, Heating, Cooling
- Version: With diffusion barrier
- Colour: White
- Material: PE-Xa
- Material quality inner layer: PE-Xa
- Material quality middle layer: EVOH
- Material quality outer layer: PE-Xa
- Number of layers: 5
- Glass fiber reinforced: No
- Diffusion barrier: Yes
- Dimension (Nominal diameter): DN 12
- Outer pipe diameter: 16 mm
- Wall thickness/Material thickness: 2 mm
- System-bound: Yes
- Max. medium temperature (instantaneous): 95 °C
- Max. working pressure at 20°C (PN): 10 bar
- Wall roughness: 0.0005 mm
- Coefficient of linear expansion: 12 mm/(m.K)
- Flexible: Yes
- Suitable for surface mounting: No
- Minimum bending radius: 34 mm
- Tube color: White
- With protective tube: No
- With thermal insulation: No
- With protective cap/plug: No
Related products
-
LK Turntable EPS 300x1200x50mm
Turntable in EPS with pipe turns and grooves for supply pipes intended for LK Universal Pipe 16mm, used with LK Grooved Plate EPS 30/50/70.
2419903
156 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 2 till 10 vardagar
-
LK Turntable EPS 300x1200x70mm
Turntable in EPS with pipe turns and grooves for supply pipes intended for LK Universal Pipe 16mm, used with LK Grooved Plate EPS 30/50/70.
2419904
280 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 2 till 10 vardagar
-

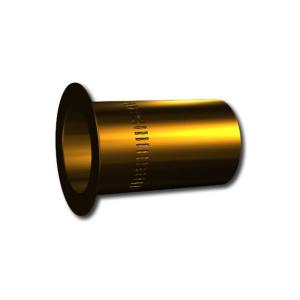

LK Support Sleeve WP 16mm
Brass support sleeve for PE-X pipes with dimension 16 mm.
4814372
22 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 2 till 5 vardagar
-

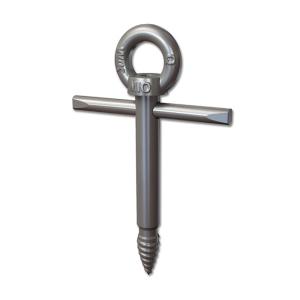

LK Pipe Puller PE-X 16mm
