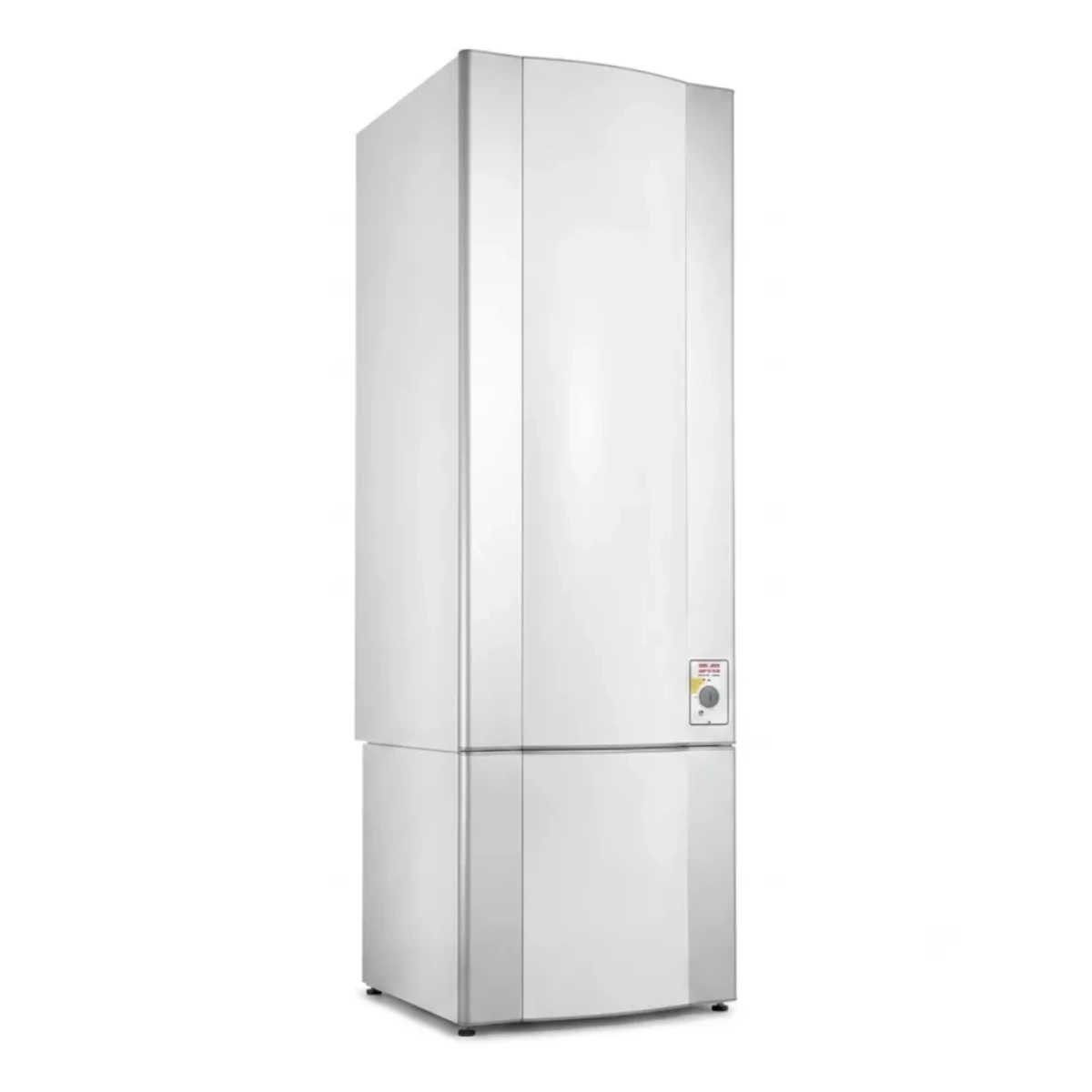

Metro Therm Modul 300E Water Heater Enameled Steel

Description

Secure your family's hot water with a powerful and durable classic. Metro Therm Modul 300 E is the perfect solution for the larger household, the villa with a corner bathtub or for the family where many people shower one after the other. With a generous net volume of 288 liters, this water heater can handle up to 12 3-minute showers without any problems. Thanks to the highly efficient 3 kW immersion heater (at 400V fixed installation), the water heater recovers very quickly – so the next person doesn't have to worry about a cold shower.

The optimal choice for your own well and areas with high levels of lime

The Metro Therm Modul 300 E is specially developed to withstand tough water conditions. The water tank is made of high-quality glass-enamelled steel with indirect heating, which provides extremely strong protection against corrosion and deposits. This model is a recommended first choice for households on Öland, Gotland, Österlen, Uppsala and Norrtälje, among others, as well as for all properties with self-drilled wells.

Smooth installation and elegant design

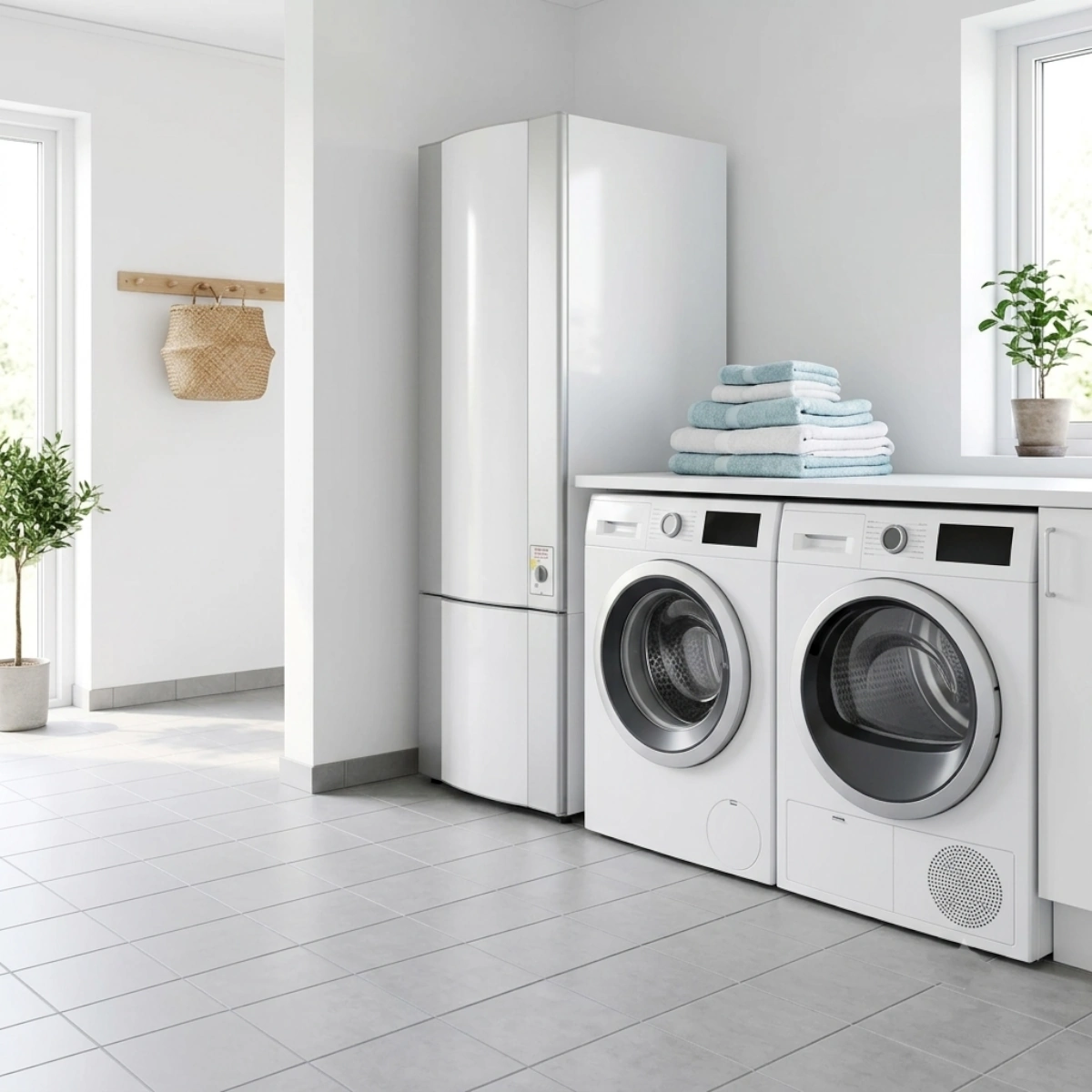

With its standardized 60x60 module shape, the Modul 300 E blends seamlessly into the laundry room, utility room or boiler room. The adjustable feet guarantee a stable and straight position even on uneven tiled floors. Installer's favorite: The heater is delivered completely complete with a factory-fitted fitting kit containing a safety valve, mixing valve and shut-off valve, and offers a very spacious and easily accessible connection space.

Technical Specifications And Care Instructions

• Power and Flexibility: Maximum power of 3 kW with 2-phase fixed installation (400V). Can also be connected to 1-phase with a plug (then gives 1 kW power).
• Heating time: Approximately 270 minutes to 50°C at full power (400V).
• Anode protection and Maintenance: Equipped with a magnesium anode that protects the enamel. This should be checked every two years. In the case of very aggressive water, it can easily be upgraded to an electronic titanium anode.
• Water criteria: Intended for water with a chloride content below 250 mg Cl/l and a pH value between 6 and 9.

Specifications

• Volume: 288 Litres
• Corrosion protection: Enamelled steel
• Type: Water heater
• Thermostat: Traditional
• Pipe connection: Down
• Type name: Type 2003
• Dimensions (HxWxD): 1820x595x615mm
• Fitting: Diameter 22 / 100mm
• Power 230V: 1 kW
• Power 400V: 3 kW
• Electrical connection: Yes
• Heating time to 50° at 400 V (approx. min): 270
• Number of showers: 12 pcs 3 min
• Protection class: IP24
• Qelec: 20.419
• Rated pressure (bar): 10
• Max safety pressure: 13.5
