Auxiliary Contact 6A 230VAC Hager
Auxiliary contact 6A 230VAC, suitable for all miniature circuit breakers, personal protection switches and earth leakage circuit breakers of 10kA.
Watch this product and we will notify you once it is back in stock.
Auxiliary Contact 6A 230VAC Hager
Description
Auxiliary contact 6A 230VAC MZ201. Suitable for all miniature circuit breakers, personal protection switches and earth leakage circuit breakers of 10kA from Hager. Mounted on the left side of the miniature circuit breaker, personal protection switch and earth leakage circuit breaker. Shows the position of the main contact. Takes up 1/2 module space. The miniature circuit breaker can be equipped with auxiliary or signal contact, undervoltage or shunt release.
Specifications
- Rated current: 6 A
- Number of modules: 0.50
- Connection type: Screw terminal

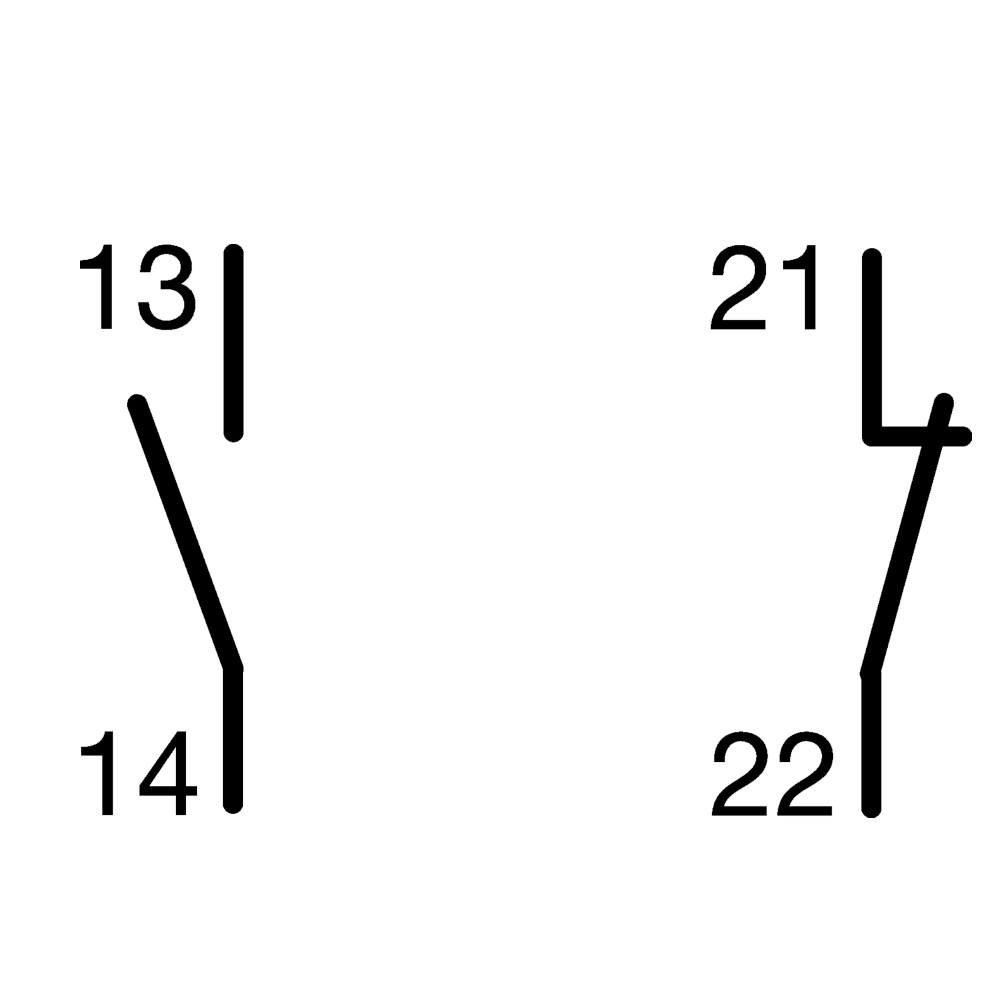

- Contact type: 1NC + 1NO
- Mounting type: Click mounting
- Area flexible conductor: 6 mm²
- Area solid conductor: 10 mm²
- Rated insulation voltage Ui: 4000 V
- Supply voltage: AC
- Operating temperature: -25 - 60 °C
- Storage/transport temperature: -40 - 80 °C
- Mechanical life (switching operations): 12000
- Mechanical life (electrical switching operations): 6000
- Total power loss at nominal rated current: 0.10 W
- Height: 80 mm
- Width: 9.50 mm
- Depth: 40 mm
- Number of INV contacts: 0
- Number of NC contacts: 1
Related products
-
Differential Circuit Breaker 1Pol+N Type-A B-Characteristic 16A 10mA 6kA 240VAC IP2X Hager
It continuously monitors fault currents and automatically breaks the current in the event of an earth fault, overload or short circuit.
EAN3250611068099
813 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 3 till 7 vardagar
-
Miniature Circuit Breaker Screw Connection 4Poles B-Characteristic 20A 6kA 230-400V IP20 Hager
Miniature circuit breaker with 4 poles and B-characteristic, intended for protection of electrical installations against overload and short circuit.
EAN3250614310560
619 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 3 till 7 vardagar
-
Mini Circuit Breaker Screw Connection 3 Poles B-Characteristic 63A 6kA 400V IP20 Hager
With screw connection 63A, B-characteristic with a breaking capacity of 6kA, double connection for supply, one for phase rail and one for cables.
EAN3250614310461
831 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 3 till 7 vardagar
-
Personal Protection Circuit Breaker QuickConnect 1Pole+Neutral B-Characteristic Type-A 16A 10kA 30mA 240V IP2X Hager
Combination of earth leakage circuit breaker and miniature circuit breaker that protects against overcurrent, overheating/fire and electrical faults.
EAN3250611067764
736 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 3 till 7 vardagar
-
Mini Circuit Breaker Screw Connection 2 Poles B-Characteristic 16A 6kA 400V IP20 Hager
Mini circuit breaker 2-pole with screw connection with breaking capacity of 6KA, double connection for supply, one for phase rail and one for cables.
EAN3250614310256
493 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 3 till 7 vardagar
-

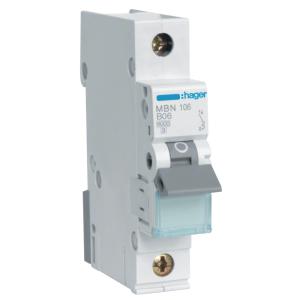

Mini Circuit Breaker Screw Connection 1Pol B-Characteristic 6A 6kA 230-400V IP20 Hager
With screw connection 6A, B-characteristic with a breaking capacity of 6kA, double connection for supply, one for phase rail and one for cables.
3250614310065
184 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 3 till 7 vardagar
-
Mini Circuit Breaker Screw Connection 2Poles B-Characteristic 20A 6kA 400V IP20 Hager
2-pole with screw connection 20A, B-characteristic with breaking capacity of 6kA, double connection for supply, one for phase rail and one for cables.
EAN3250614310263
363 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 3 till 7 vardagar
-
Mini Circuit Breaker Screw Connection 3Poles B-Characteristic 32A 6kA 400V IP20 Hager
With screw connection 32A, B-characteristic with a breaking capacity of 6kA, double connection for supply, one for phase rail and one for cables.
EAN3250614310430
487 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 3 till 7 vardagar
-

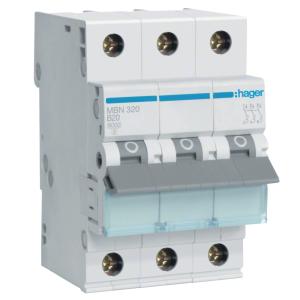

Mini Circuit Breaker Screw Connection 3Poles B-Characteristic 20A 6kA 230-400V IP20 Hager
With screw connection 20A, B-characteristic with a breaking capacity of 6kA, double connection for supply, one for phase rail and one for cables.
3250614310416
1 337 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 4 till 10 vardagar
-
Mini Circuit Breaker Screw Connection 4Poles C-Characteristic 50A 6kA 400V IP20 Hager
Mini circuit breaker with 4 poles, model MCN450, intended for the protection of electrical installations against overload and short circuit.
EAN3250614311659
772 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 3 till 7 vardagar
-
Mini Circuit Breaker Screw Connection 4 Poles B-Characteristic 40A 6kA 400V IP20 Hager
Mini circuit breaker with 4 poles model MBN440, intended for the protection of electrical installations against overload and short circuit.
EAN3250614310591
703 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 3 till 7 vardagar
-

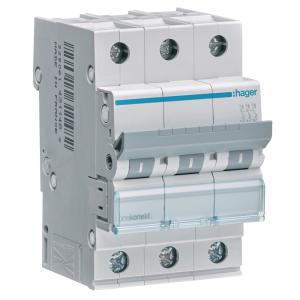

Mini Circuit Breaker Screw Connection 3Poles C-Characteristic 10A 6kA 230-400V IP20 Hager
